Product Details
Zenmuse S1

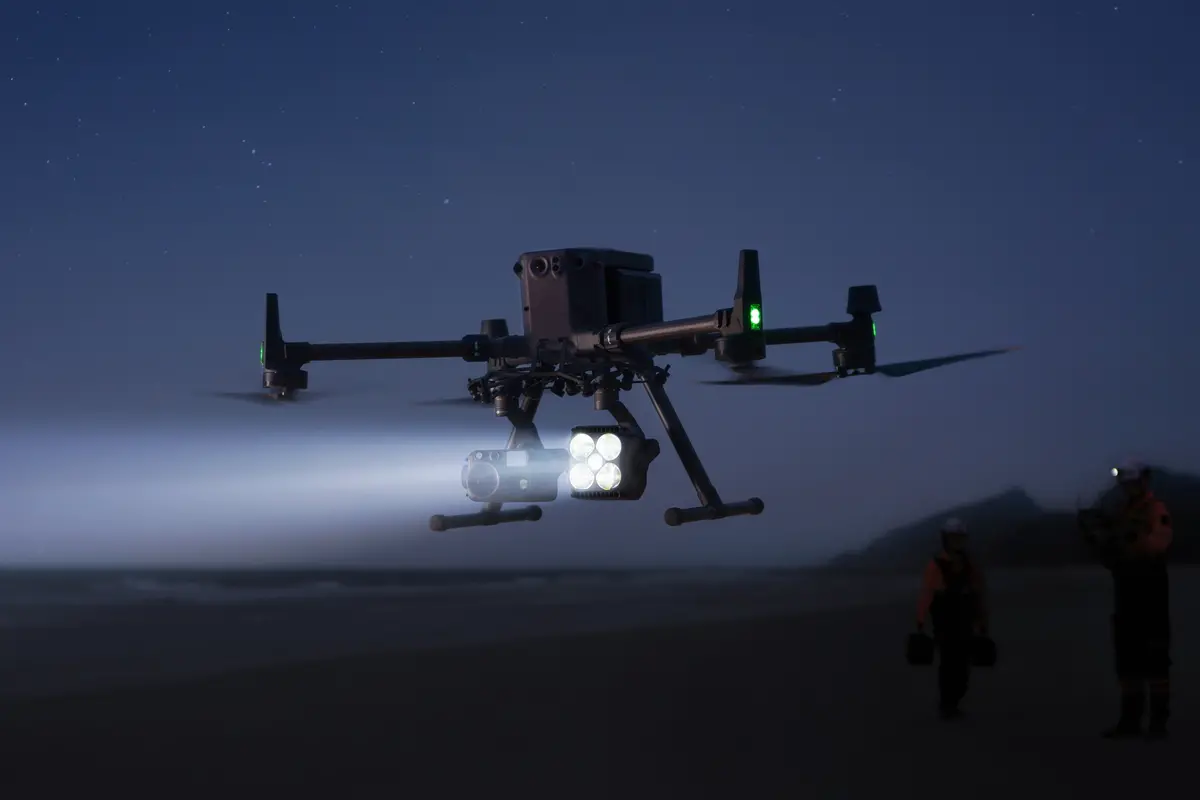

Zenmuse S1 is HBC‘s first industry large-scale drone searchlight load with high brightness, long illumination distance and support for multiple light modes, suitable for public safety, emergency rescue, inspection and other nighttime operation scenarios.
Take a Closer Look
Overview

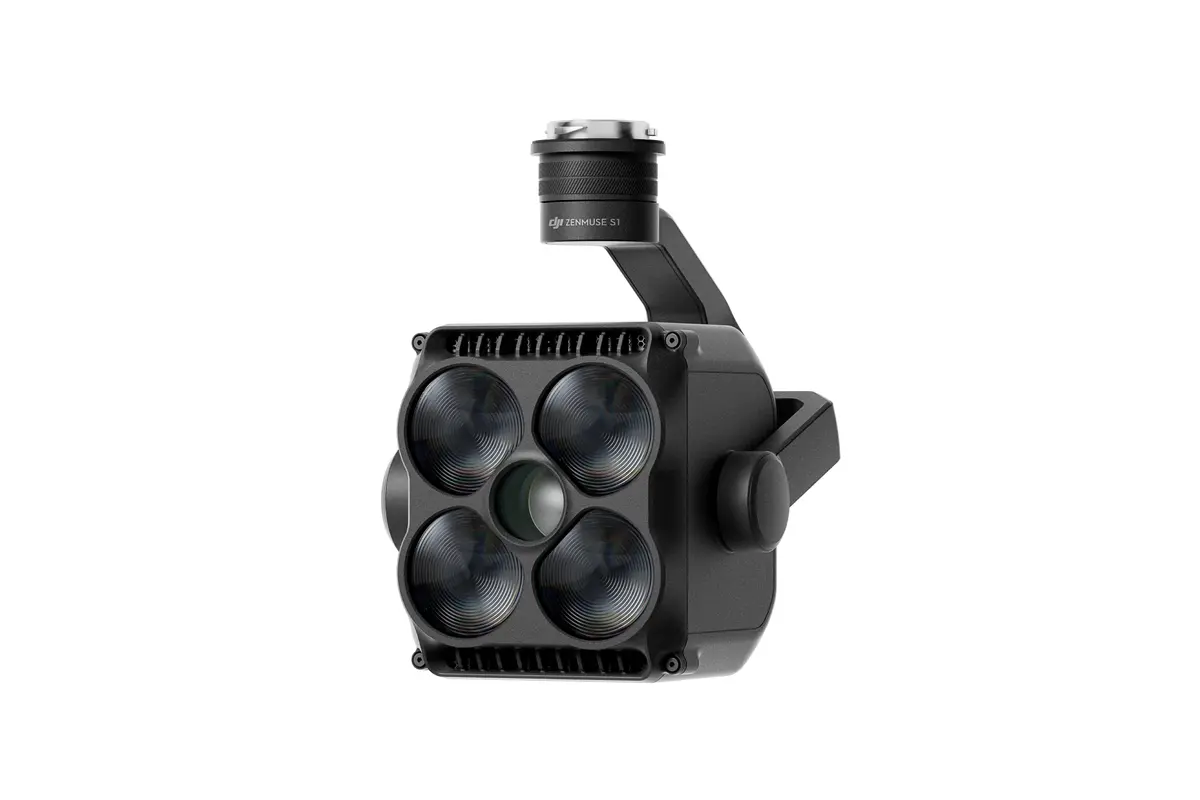

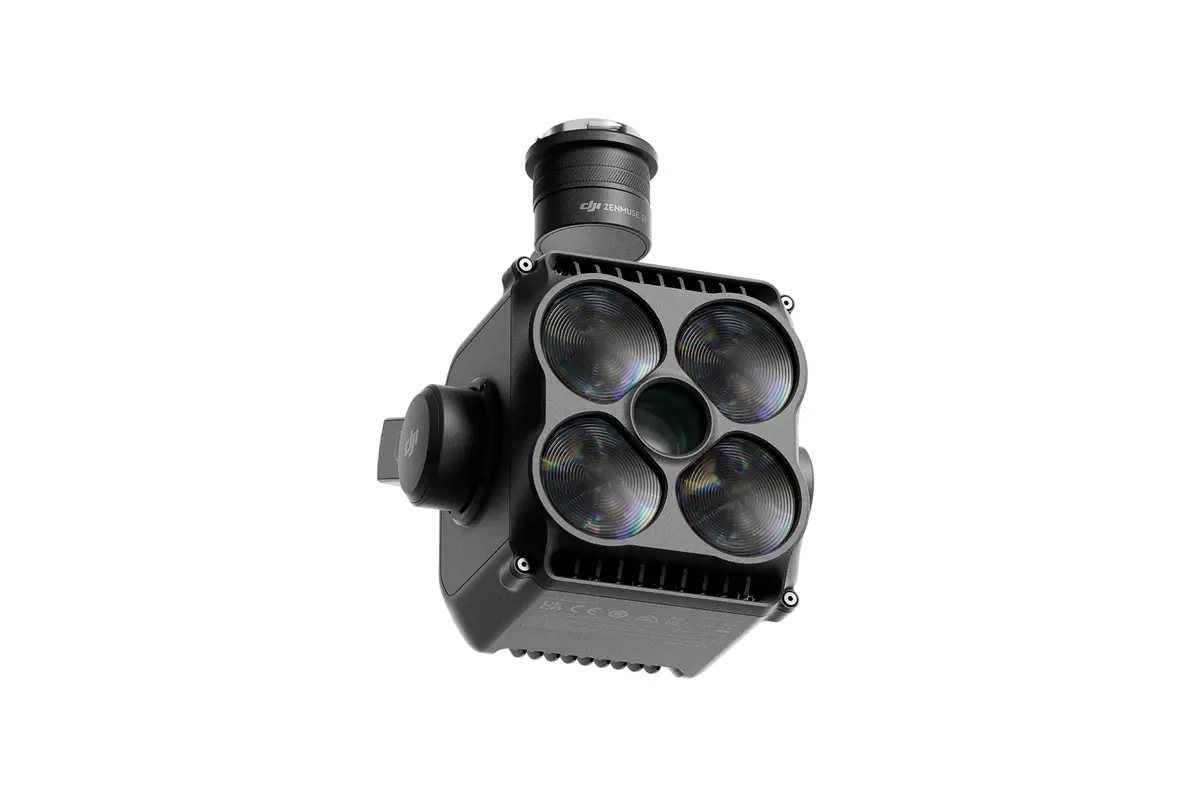

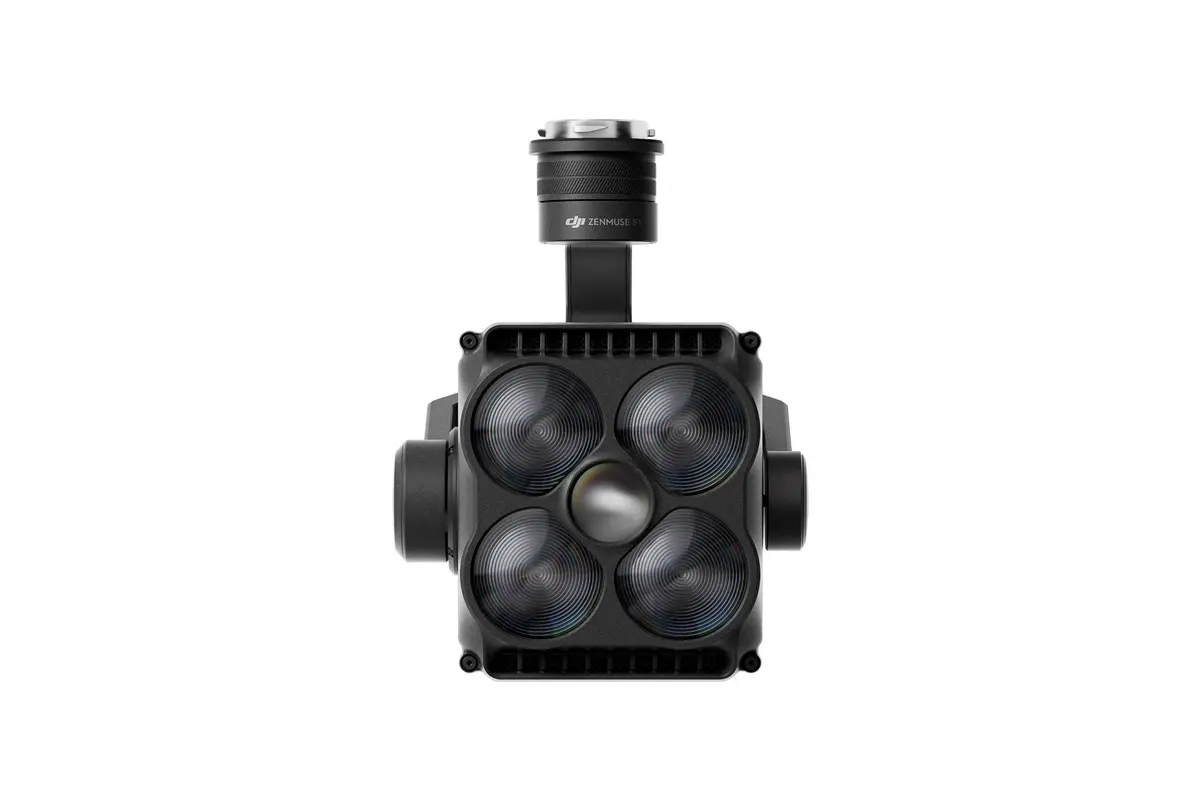

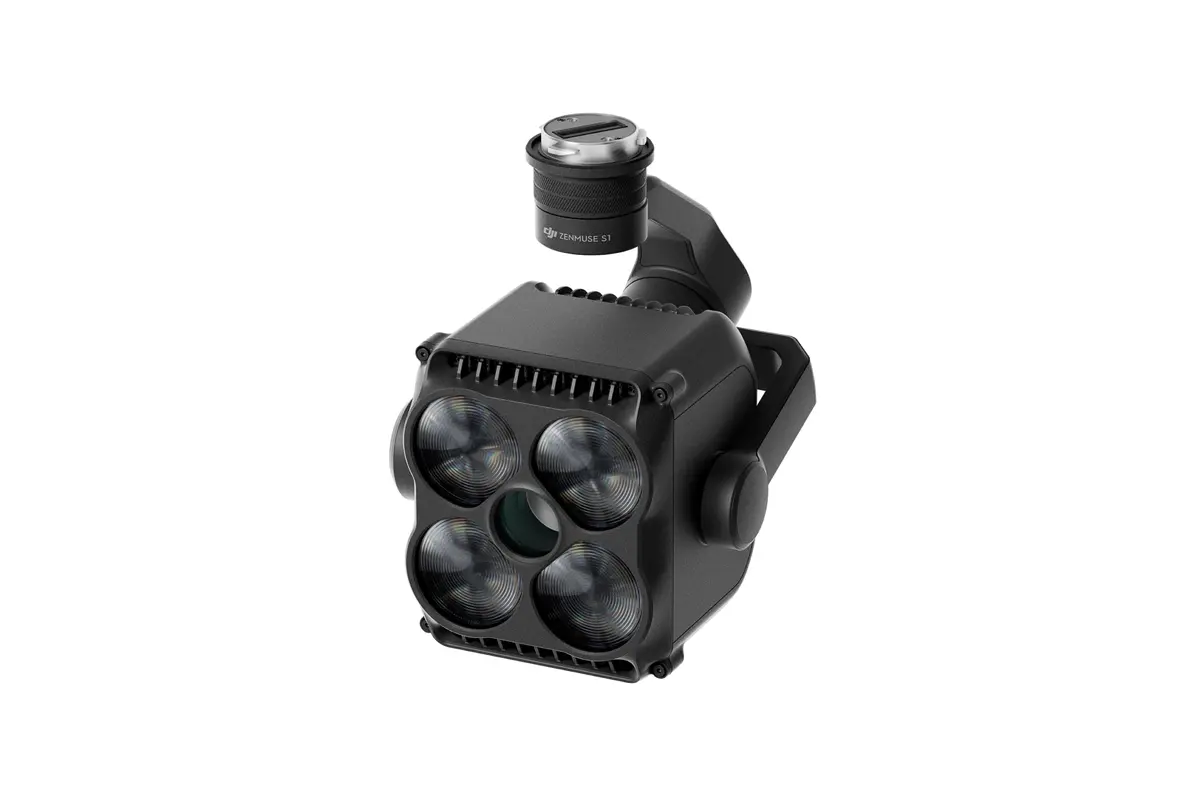

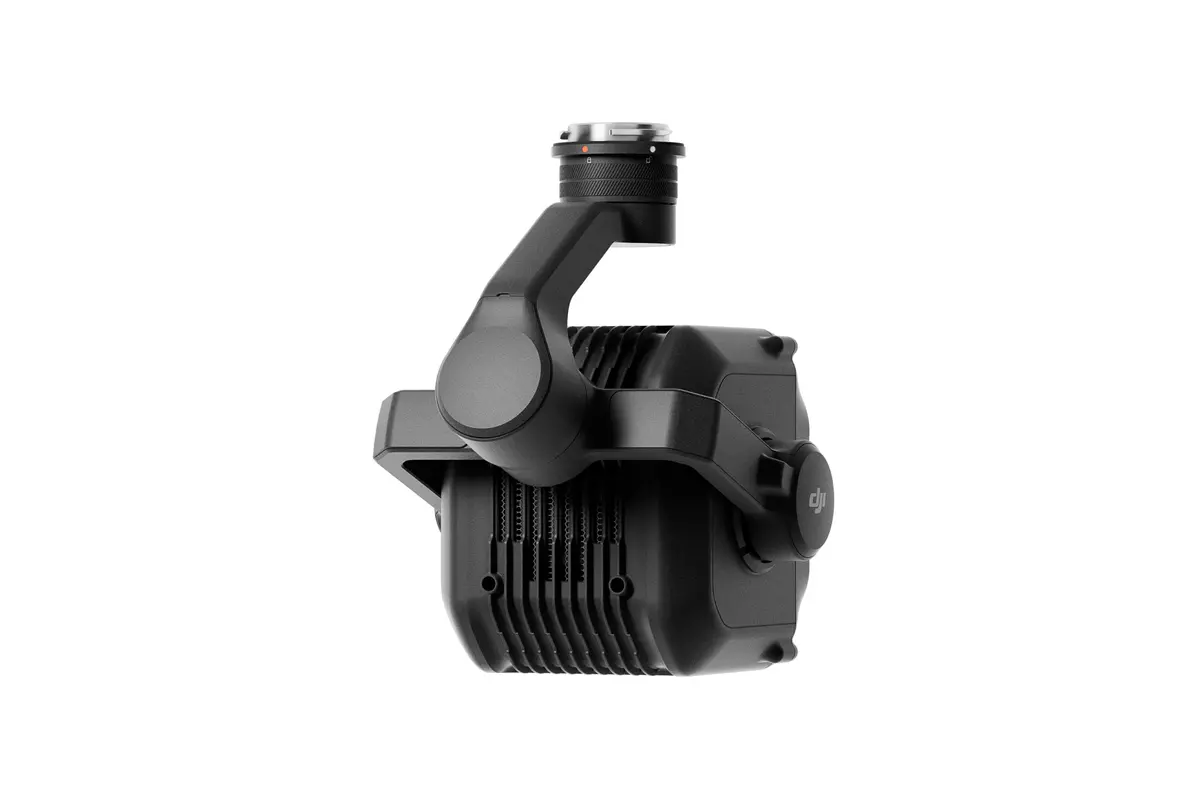

Zenmuse S1 is HBC‘s first industry large-scale drone searchlight load, adopting LEP laser white light technology with high brightness, long illumination distance, and supporting multiple light modes, which is suitable for night operation scenarios such as public safety, emergency rescue and inspection.
Tips
1. Please be sure to download and read the user’s manual and safety summary on DJI website, and read them carefully before use. 2.
2. The use of the searchlight at night may cause false obstacle avoidance, you can turn off the obstacle avoidance as appropriate, and use the aircraft and the searchlight in a relatively open and open location. 3.
3. When using the Zenith S1, please do not look directly at the light of the searchlight from a close distance to avoid a certain degree of personal injury.
4. Do not touch the surface coating of the searchlight lens directly with your hands or scratch the surface coating with hard objects, otherwise it will lead to the attenuation of light output efficiency and affect the luminous flux and illumination.
In the Box
Zenmuse S1× 1
Lens protection cover × 1
Storage case × 1
Lens cleaning cloth × 1
Technical Parameters
Weight: 760±10 grams
Dimensions: L 125 mm, W 152 mm, H 171 mm
Power rating: 68 watts
Maximum Center Illumination: 35 lux@100 m (full open mode)[1]
Effective search distance: 500 meters (full open mode)[2].
Supported Models: Matrice 300 RTK (to be used with DJI RC Plus), Matrice 350 RTK
Protection: IP54 [3]
Operating temperature: -20°C to 40°C
Compatibility
HBC Matrice 400
Matrice 350 RTK
Matrice 300 RTK
