HBC T100 Agricultural Drone
Maximum take-off weight 149.9 kg, 150-liter spreading capacity, 85 kg lifting, double atomization, 9-minute quick charge
Fully loaded with new flagships
The T100 agricultural drone, twelve years in the making, the flagship of flight defense, comes “fully loaded”. Spreading 150 liters of capacity, doubling the efficiency. Supports a variety of operation scenarios such as spraying, spreading and lifting. Fully loaded with flagship safety system, bringing unprecedented safety performance and intelligent operation experience.
Mechanical System
Surging power, efficient operation, no fear of high temperature.
Coaxial Dual-Rotor
Powerful Performance
Maximum single-axis pull force 82 kg
Maximum operating speed 13.8 m/s
Small size, large capacity
Higher efficiency
33% increase in full load power efficiency
Safety Redundancy
Paddle Stop Protection
Low Power High Capacity
Efficient operation
28% increase in effective spray rate
21% increase in operating speed
Increased fruit tree penetration

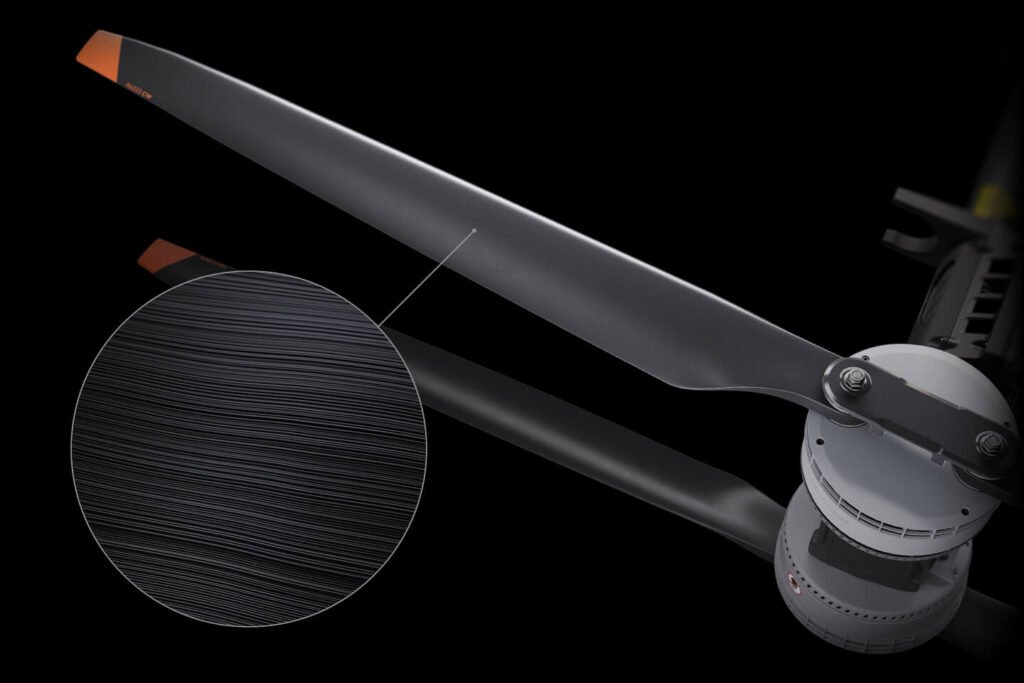

62-inch carbon fiber blade
Adopting carbon fiber material, stronger rigidity, lighter weight, and not easy to deform under high temperature; optimized wing shape, enlarged paddle diameter, energy efficiency increased by 16%.

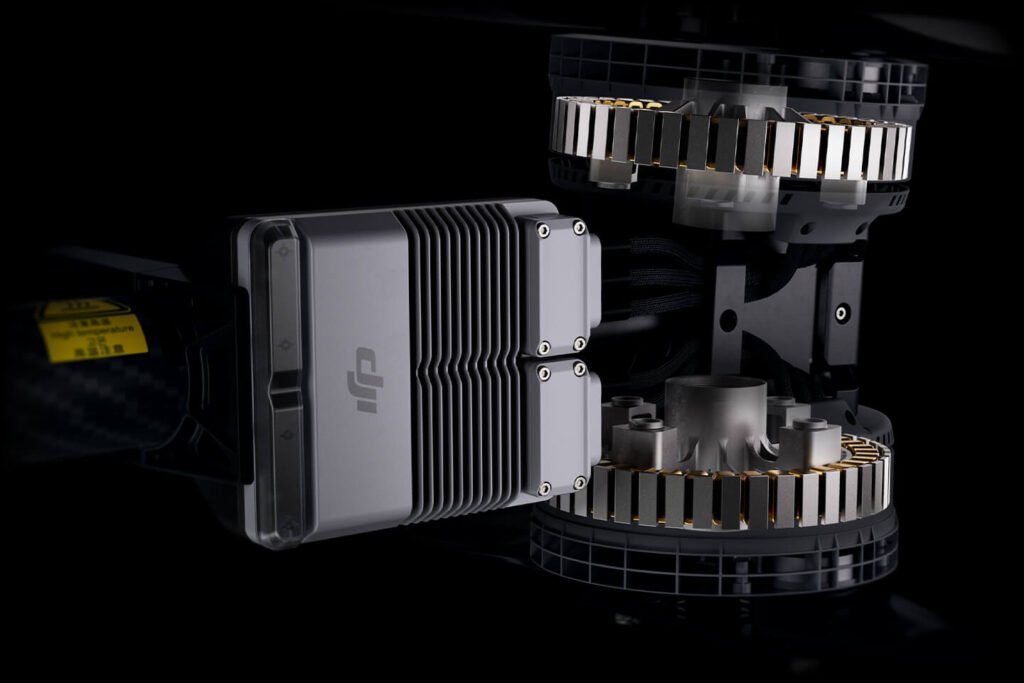

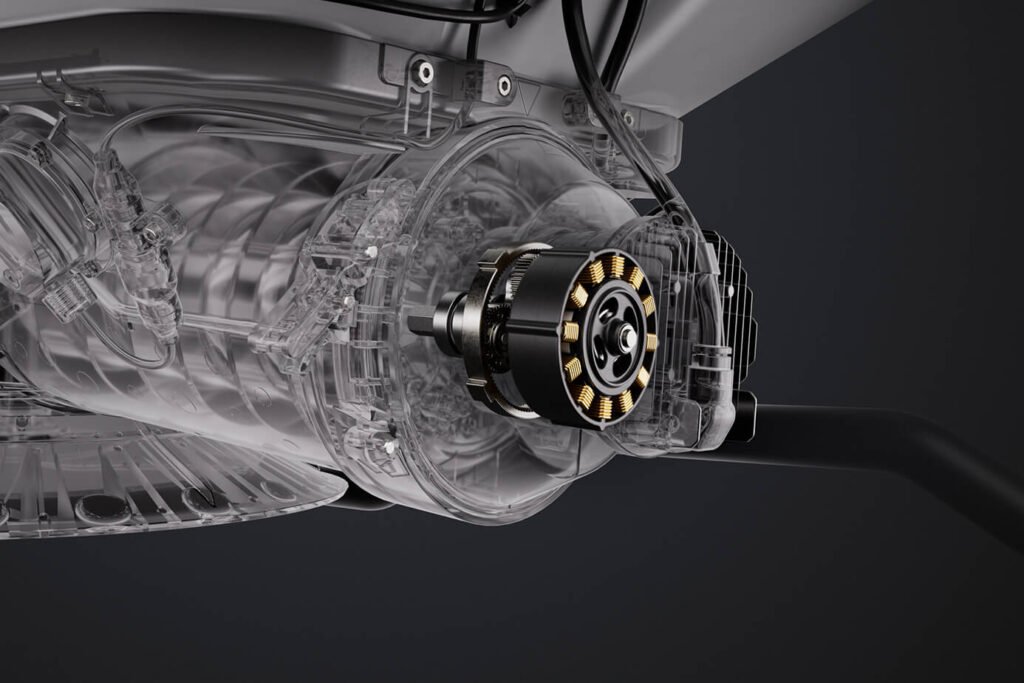

Electromechanical modulation
Larger motor size for more torque. The ESC’s 370 amp throughput is stable and reliable, resulting in faster response times.
Security System
Loaded with flagship safety systems, flies safer and safer.

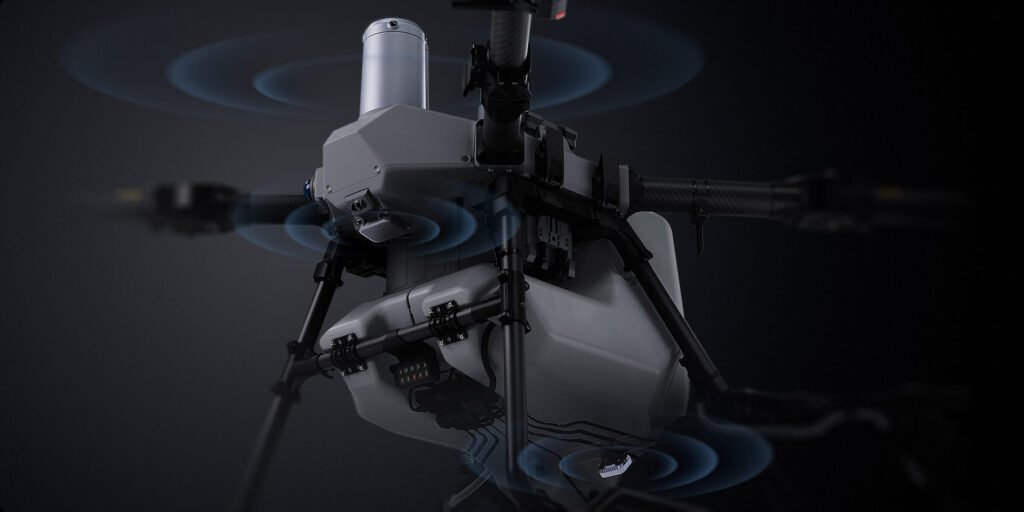

Omni-directional sensing, accurate obstacle avoidance
The T100 is equipped with the new LIDAR, millimeter wave radar and five-eye fisheye vision system, which can omnidirectionally sense and observe the surrounding environment and accurately detect obstacles.
Capture spatial point cloud densities of up to 300,000 points/second, for an unobstructed view of complex terrain.
Front radar 5000 times/sec vertical airspace scanning + horizontal 360° mechanical rotation scanning + rear-view radar, more comprehensive detection range.

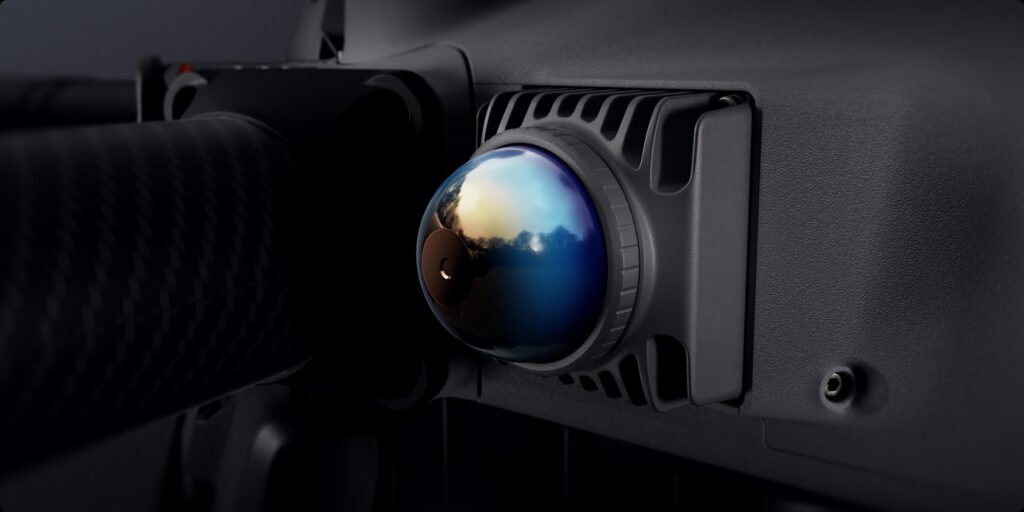

Quad Vision + FPV low-light full-color camera assists in free viewing of front, back, left, right, and bottom flight frames, and intelligent detection of obstacles.

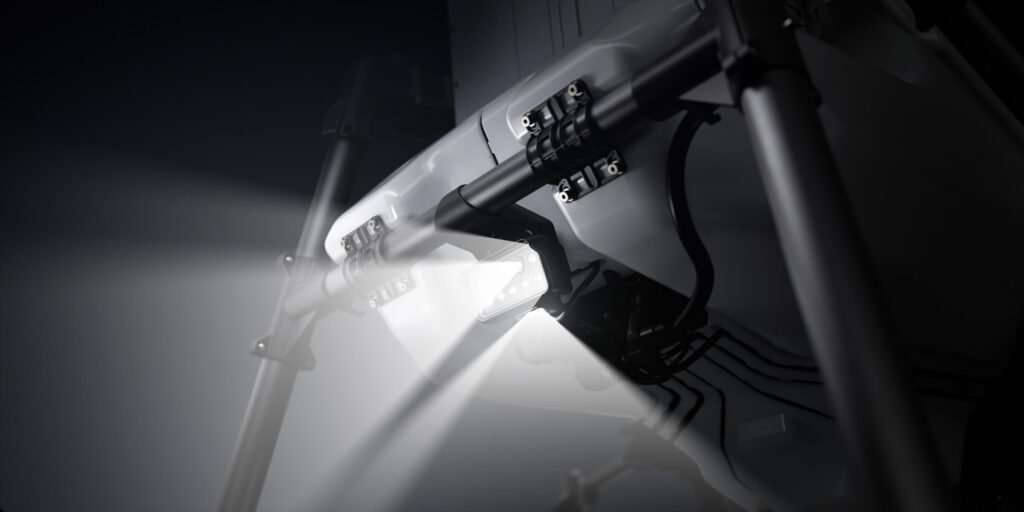

On the basis of the original low beam, new front-viewing high beam and down-viewing fill light are added for safer night operation.
Smarter detours
Distinguish between power lines, utility poles, high voltage towers, trees, etc., intelligently select the optimal detour direction, and the detour is silky smooth.
When the second flight passes by, the go-around is more accurate, and you can also save the obstacles to the plot with one click, so the more you fly, the safer you will be.
In case of complex scenes, after avoiding obstacles and hovering, there is no need to intervene manually, and a new detour path can be found automatically.
AR is your concern for human-vehicle safety.
Clearer and more intuitive obstacle display than FPV when encountering small obstacles or working at night.
It can detect pedestrians and vehicles during takeoff and landing, and support AR display; during flight, it can also AR display the type of obstacles.
Generate AR routes during operations to assist in cueing flight paths.

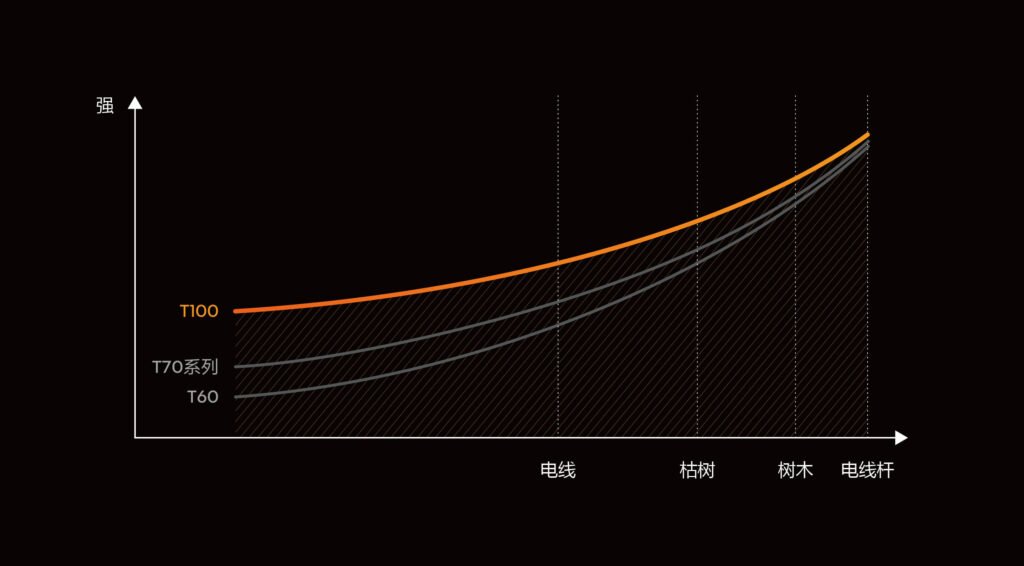

Better obstacle avoidance
With multi-sensor fusion and upgraded algorithms, T100 has a higher success rate in avoiding all kinds of obstacles and a more accurate detection of small obstacles.
Spraying system
Double atomization, penetrating and even

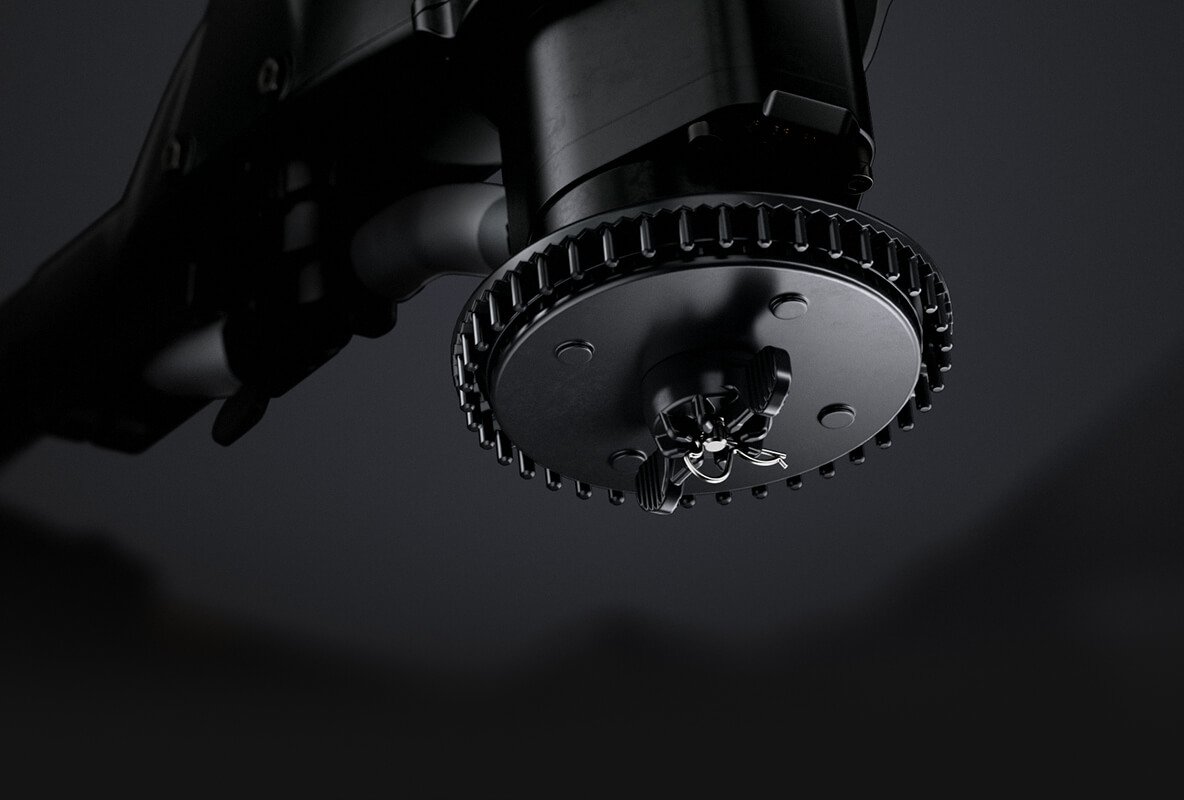

The T100 comes standard with a 75-liter tank and dual atomized centrifugal nozzles, which provide a large flow rate, uniform and fine mist droplets, outstanding operational efficiency and excellent results. Fruit tree users can also choose to match the mist nozzle set, the flow rate and atomization effect of the full upgrade, high plant, thick canopy fruit trees can also penetrate the back of the leaf.
40L/min
25%
10 micron particle size
20%
36%
30L/min
50-500 microns
5-11m
Water-cooled mist spray nozzle (optional)
The finest particle size of fog droplets can reach 10 microns, and the liquid can strongly penetrate the back of the leaf, so the effect is sound. The new liquid flow channel design can quickly take away the heat of the double centrifugal motor operation, durable.

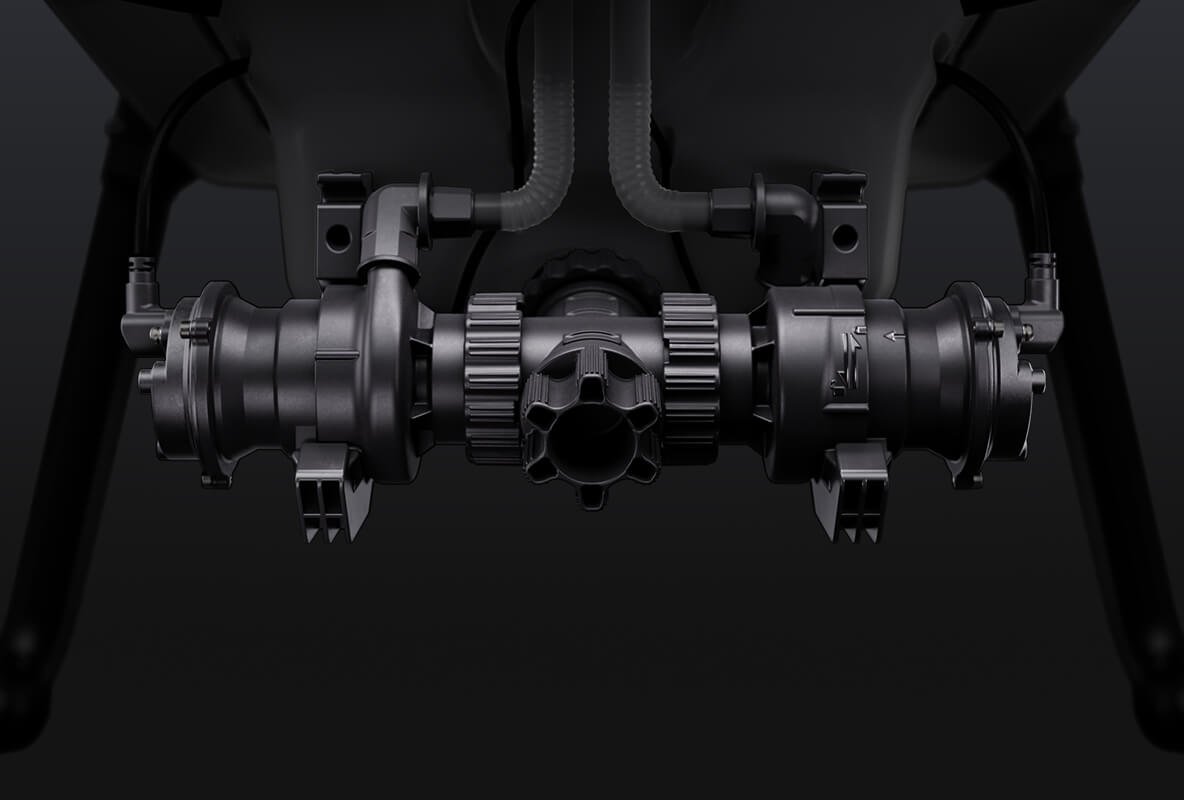

Magnetic Drive Impeller Pumps
The impeller structure is optimized and the chamber volume is enhanced to meet the needs of fruit trees and other large flow scenarios, isolated from corrosion, stable and reliable.
Rear four nozzle layout
The spraying system is modularized and easy to disassemble. Widens the spraying width of fruit tree operations while guaranteeing coverage uniformity. Reduce the interference of water mist on the visual system.
Dual-channel electromagnetic flowmeter
The flow rate is accurately detected in real time and dynamically controlled to guarantee high-precision operation. No need to contact the liquid directly, avoiding corrosion and stronger durability.
Spreading systems
Two bags of fertilizer at a time.

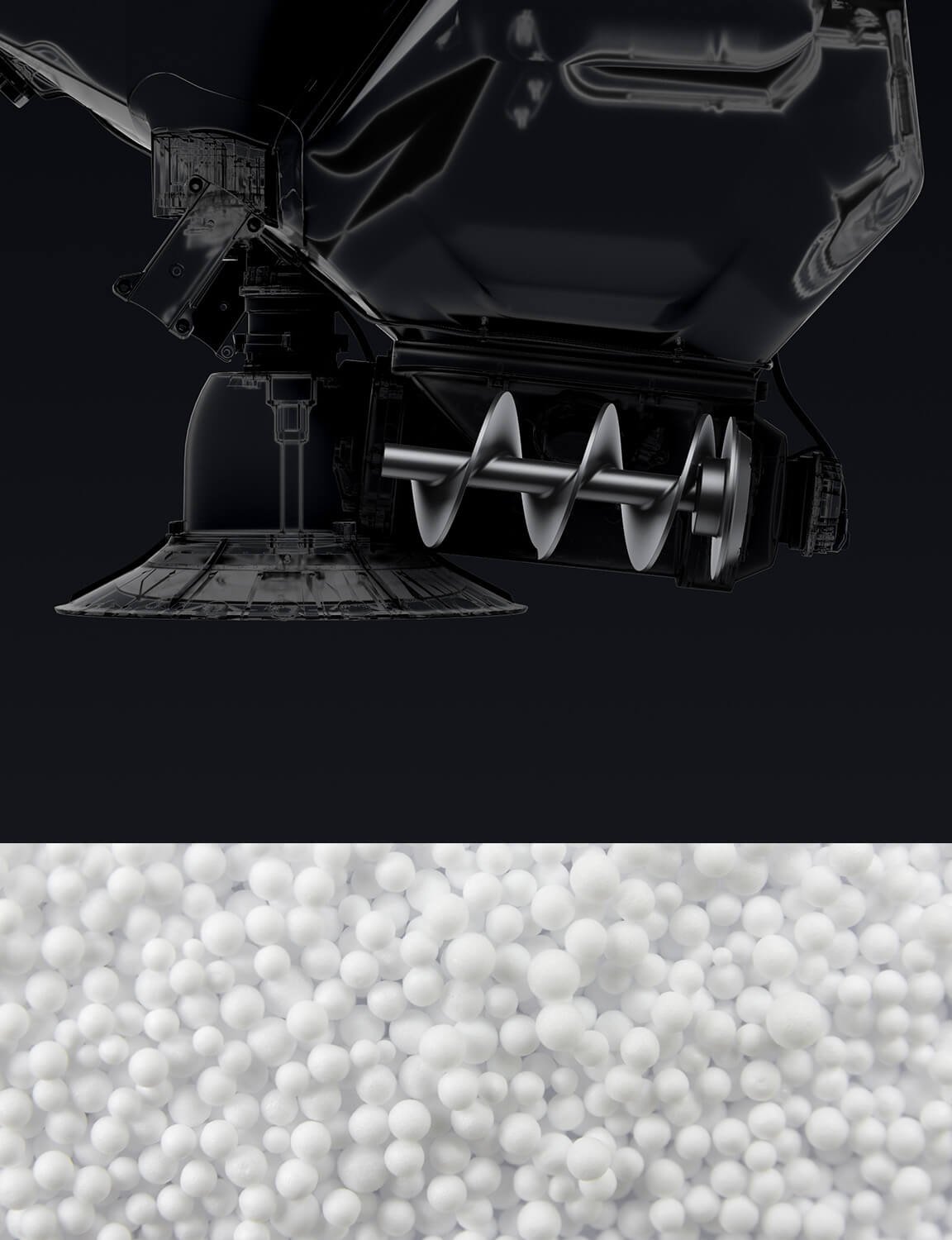

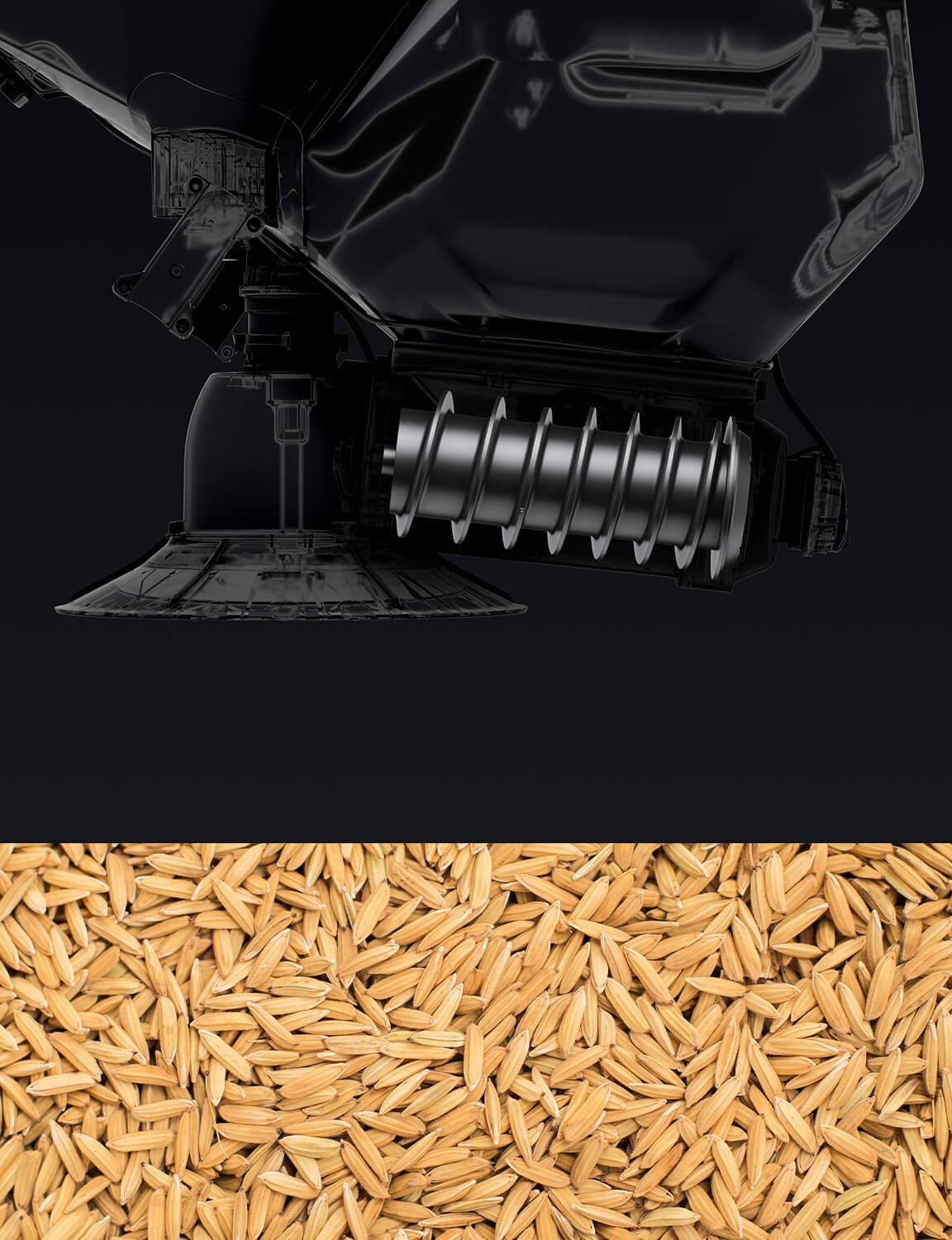

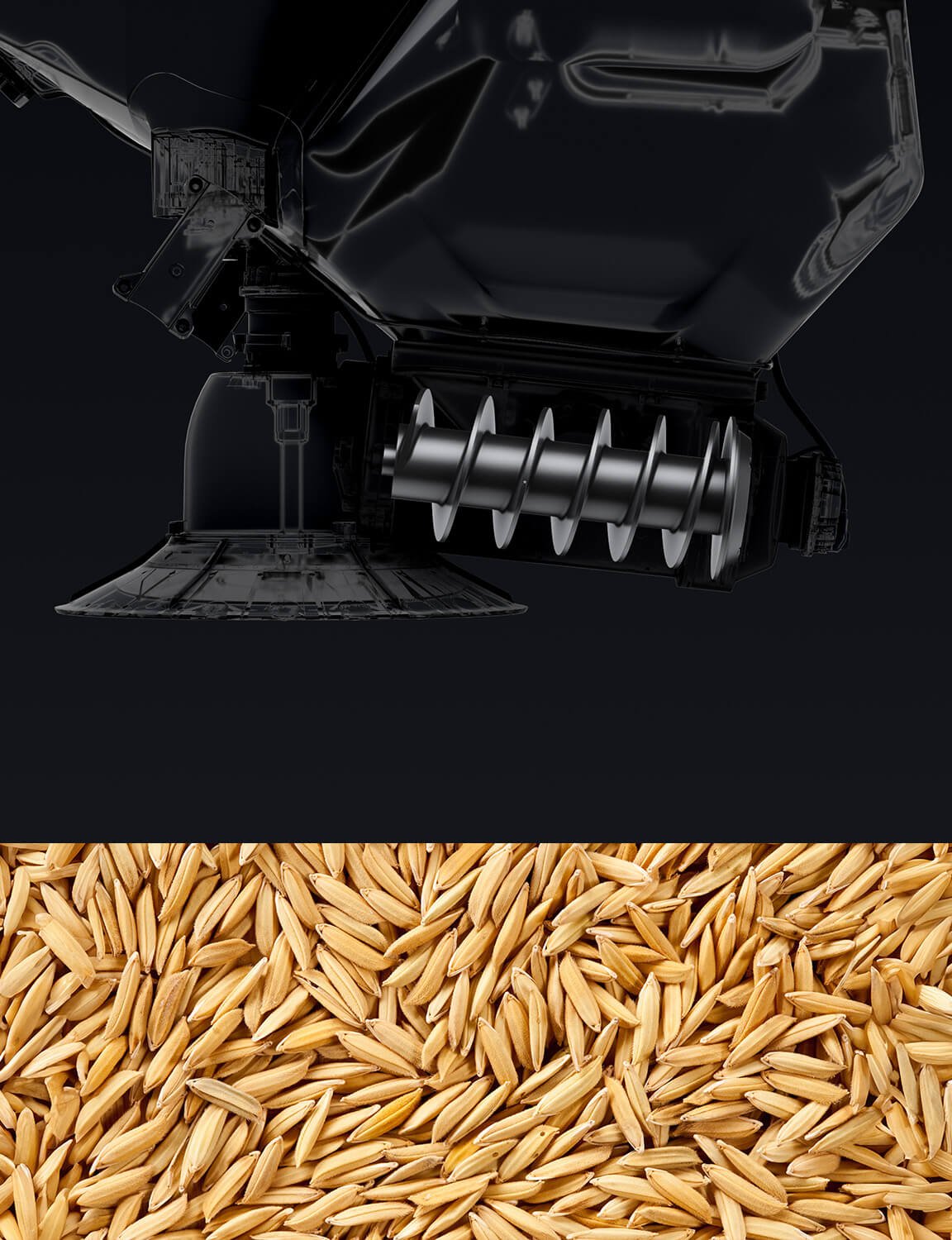

T100 spreading system with a new generation of screw winch, double the flow rate, two bags of fertilizer at a time, applicable to a variety of materials, field, fruit trees, aquatic and other spreading scenarios to take them all.
150L
70%
400kg/min
10m
Double the motor torque without clogging.
It can display the amount of material in real time and accurately, add as much as you need to effectively avoid waste.
Full flow section broadcasts evenly for outstanding results. Stainless steel brim for strength and durability.
The whole packet is easy and convenient to refill, two bags of fertilizer at a time.
Safety for people and cars, AR is here for you.
T100 spreading system with a new generation of screw winch, double the flow rate, two bags of fertilizer at a time, applicable to a variety of materials, field, fruit trees, aquatic and other spreading scenarios to take them all.
Oversized stringer
Suitable for 0.5-10 mm particle size materials, such as: fertilizer, wheat seeds, feed, etc. Recommended dosage: 5-50 kilograms/mu.
Large winch (optional)
Suitable for 4-10 mm particle size materials, such as: rice seed, fertilizer, etc. Recommended dosage: 5-18 kg/mu.
Medium gibbons
Suitable for 4-6 mm particle size materials, such as rice seeds. Recommended dosage: 1.5-8 kg/mu.
Small winch (optional)
Suitable for 0.5-4mm particle size materials, such as: rapeseed, granular herbicide, granular insecticide, etc. Recommended dosage: 0.2-1.5 kg/mu.
Lifting system
Good Agricultural Lifter
Facing the transportation needs of agriculture, forestry, animal husbandry and fishery, the T100 can also be transformed into a lifter. With a lifting capacity of 85 kg, it can carry more loads and farther, and it also has functions such as automatic swing elimination, automatic flight to loading and unloading points, and weight checking, etc., which can flexibly cope with all kinds of agricultural transportation scenarios.

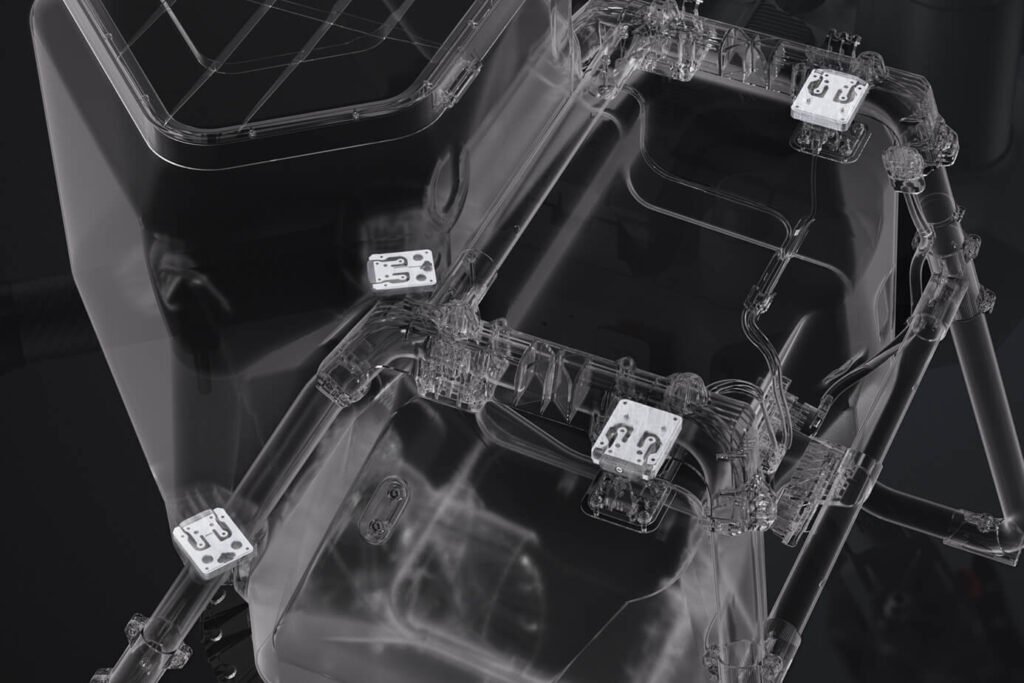

With the three-way force sensor, the drone can automatically adjust its attitude during flight to eliminate oscillation and make the operation safer.
Real-time weighing by means of three-way force sensors to avoid overloading and facilitate billing.
Loaders and unloaders can use their cell phones with the RTK module to add “load” and “unload” points and synchronize them to the remote control. Flyers can quickly find their destinations through AR projection in the remote control.

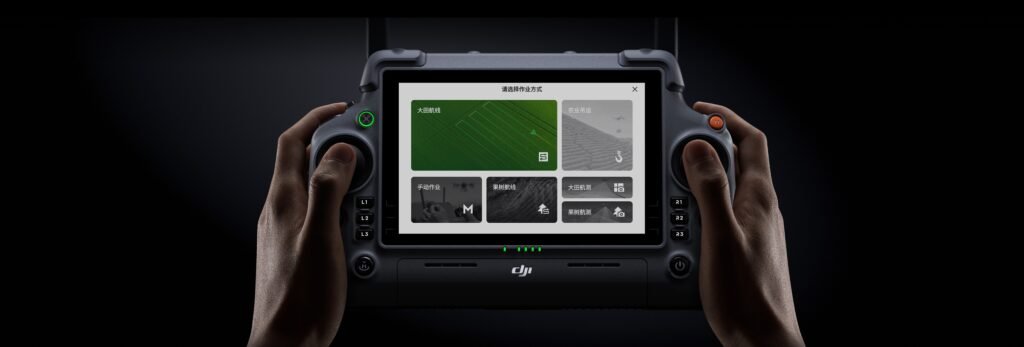

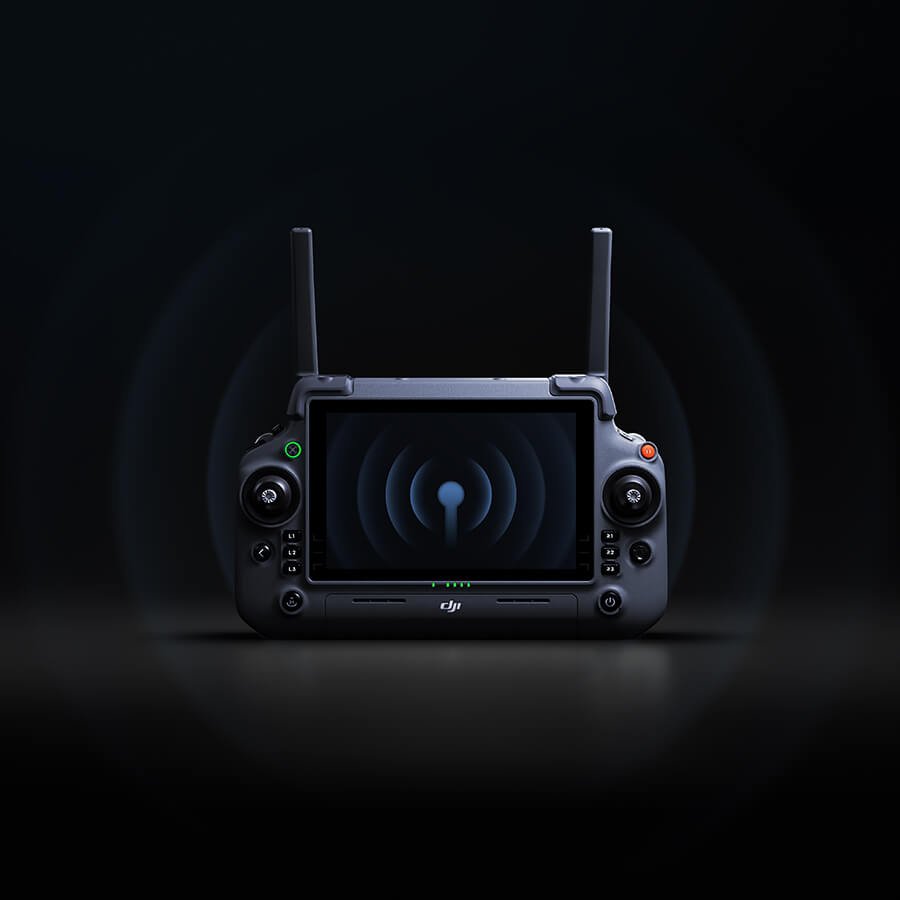

Smart Remote
Newbies and veterans alike will be able to get on with it
T100 Agricultural UAV, 12 years beyond, the flagship of fly defense “loaded”. Spreading 150 liters of capacity, doubling the efficiency. Supports a variety of operation scenarios, including spraying, spreading and lifting. The flagship safety system is fully loaded, bringing unprecedented safety performance and intelligent operation experience.
New users, easy to get started
Just complete the circle, you can work with one key, zero takeover throughout, zero difficulty to get started.
Cell phone and remote control can be circled, on-demand selection, the route is automatically generated after circling.
One key to call the parameter template, convenient and fast, accurate dosage, the whole process of zero takeover.
Automatic return without drugs and electricity.
Master of the job, control at your fingertips.
With smooth manual operation and rich and efficient auxiliary functions, you can work on complex plots of land with ease.
The aerial survey area of large fields is 300 acres/flight, and the aerial survey area of fruit trees is 150 acres/flight, and the map can be produced quickly on the ground. The density of point cloud is improved, the detection rate of wires is increased by 80%, and the obstacle detection is more accurate.
Walk through and circle multiple scattered plots; call up scattered plots of large fields/fruit trees at once for continuous operation.
One key to return to the breakpoint, one key to save another plot and other practical functions, complex small plot operation more easily.
Suitable for more scenarios such as mixed crop planting, paddy fields and other flexible operations.
Hundred tests
The T100 series has passed 700 hours of reliability tests, such as real flight aging test, accelerated fatigue test of parts, high and low temperature test, etc. The airframe is stable and reliable.
Signal Modules
Great trick, full of signals.
The O4 mapping algorithm is upgraded, signal is always online, and there are many other accessories such as 4G enhanced mapping to cope with all kinds of poor signal scenarios and help smooth operation.
O4 Image Transmission
The upgraded algorithm of the transmission system enables the transmission distance up to 2 kilometers with smooth and stable images.
O4 Image Transmission

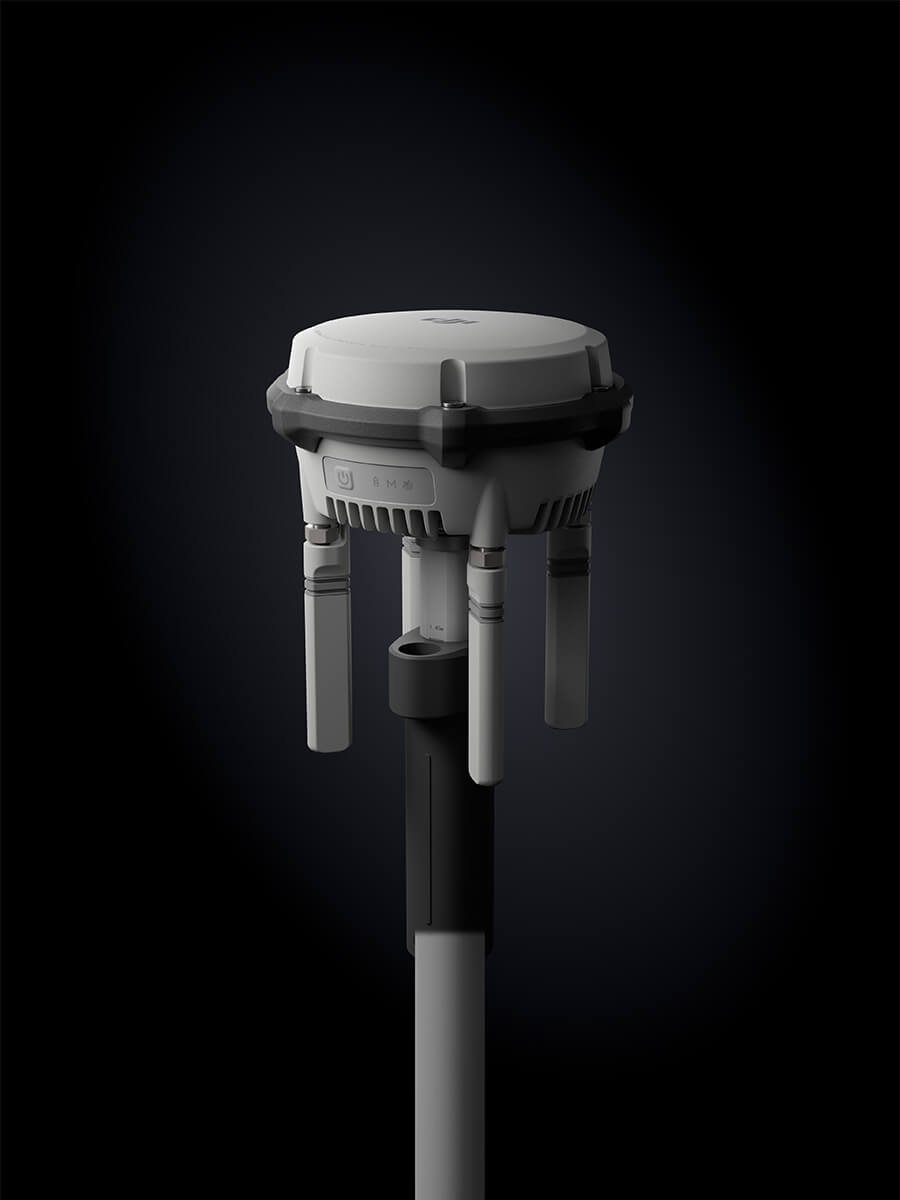

H-RTK3 Agriculture Edition (optional)
4G Enhanced Mapping (optional)

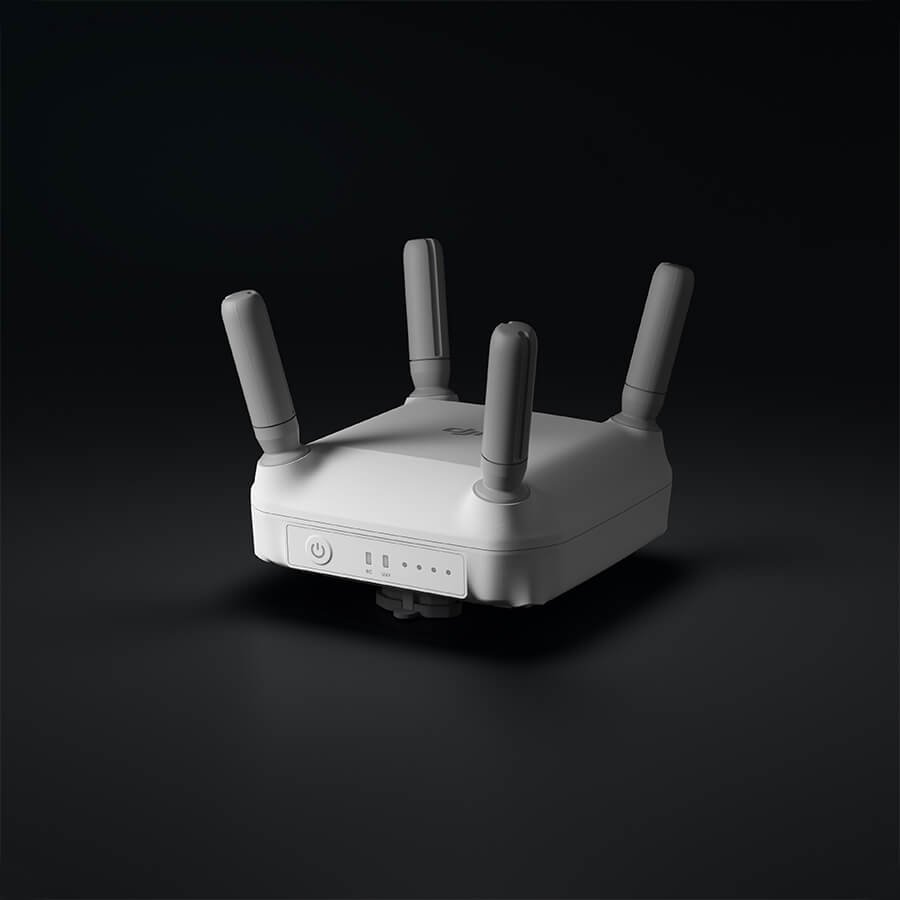

04 Mapping Relay (optional)
Energy systems
9-minute fast charging for economical energy savings
In order to provide stable and continuous energy supply, DB2160 intelligent flight battery with more power and lighter weight. 9-minute extreme fast charging[3] and lower fuel consumption. New three-channel cooling design, through the air ducts to the battery cooling, to ensure energy security and stability at the same time, to achieve safe cooling, cooling while flying. What’s more, the car charger is silent to replenish energy and green.
9MIN
15%
13%
50%

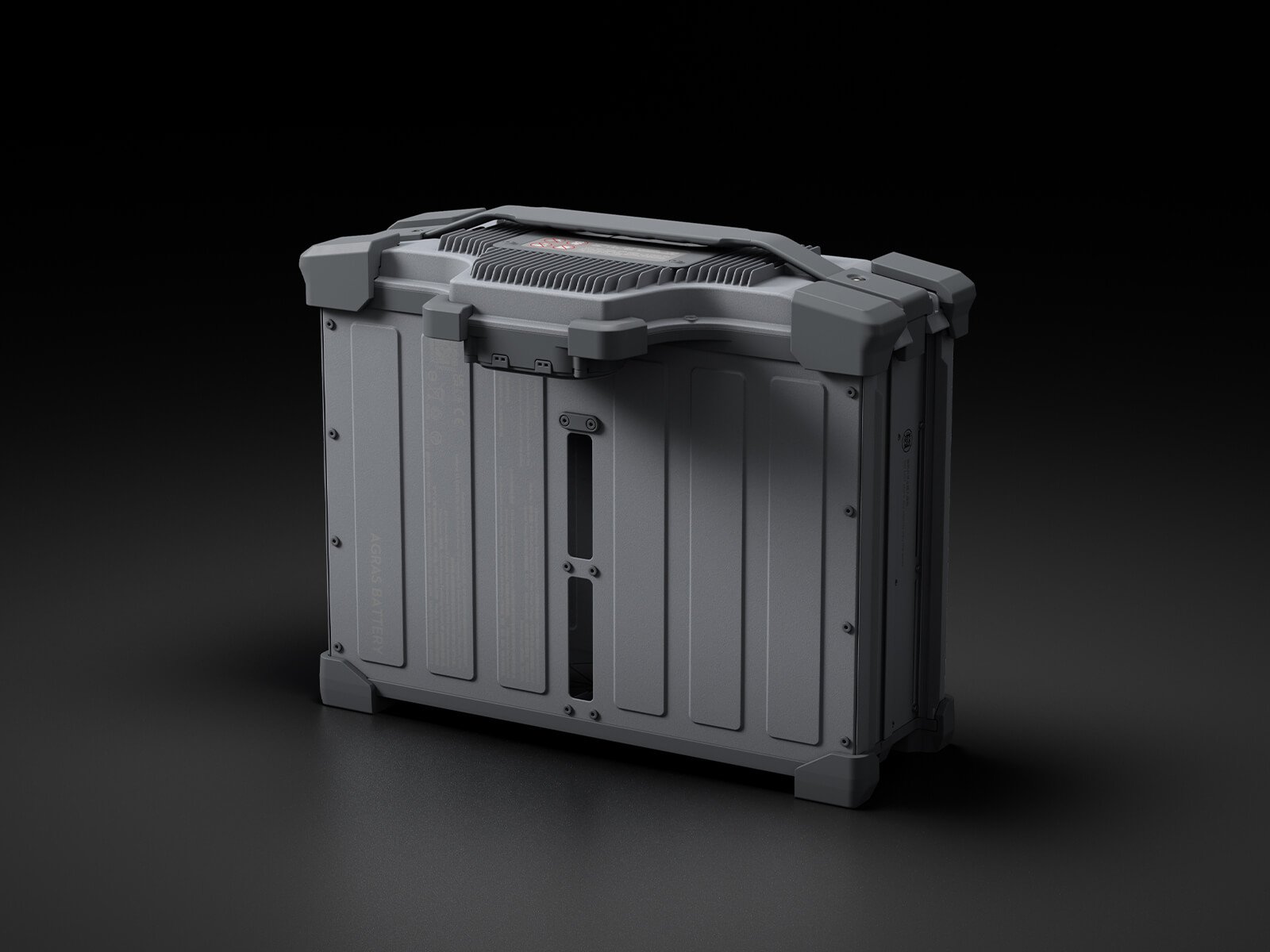

DB2160 Smart Flight Battery
41 AH
9-minute fast charge (30%-95%)
1500 warranty cycles
500 amp high-power connector
14.7 kg dead weight
Skin-friendly handle
D14000iE All-in-One Inverter Charging Station
15% EFI Fuel Saving
11500 Watt Fast Charge
1500 Watt AC Output
1.8 Meter Extra Long Charging Cable
C12000 Smart Charger
Three-phase power input 12000 watt fast charging Power adaptive protection 1.8 meter long charging cable
CC15000 Smart Car Charger
15000 Watt Fast Charging Quiet Charging 1.8 Meter Extra Long Charging Cable
Which drone is best for you?
HBC T100 Agricultural Drone
Load capacity 75 kg
30 l/min (2 nozzles standard)
40 l/min (4 nozzles optional)
Dual atomizing centrifugal nozzles: 50-500 µm
Water-cooled mist nozzles (optional): 10-500 µm
Recommended spray width 9 m
150-liter (75 kg) container
400 kg/min max. discharge rate
Effective spreading width 10 m
85 kg load capacity
Real-time weighing
Automatic swing reduction
Cell phone guidance at loading and unloading points
LIDAR
Five-eye vision system
2 millimeter-wave radars
1 single-plate radar
Laser point cloud real-time display
Intelligent detection of obstacle types
AR display of people/vehicles/obstacles
Automatic memorization of obstacle positions
Intelligent extrication
No aerial survey ground imitation operation
9-minute Extreme Fast Charging
DB2160 Intelligent Flight Battery
D14000iE All-in-One Inverter Charging Station

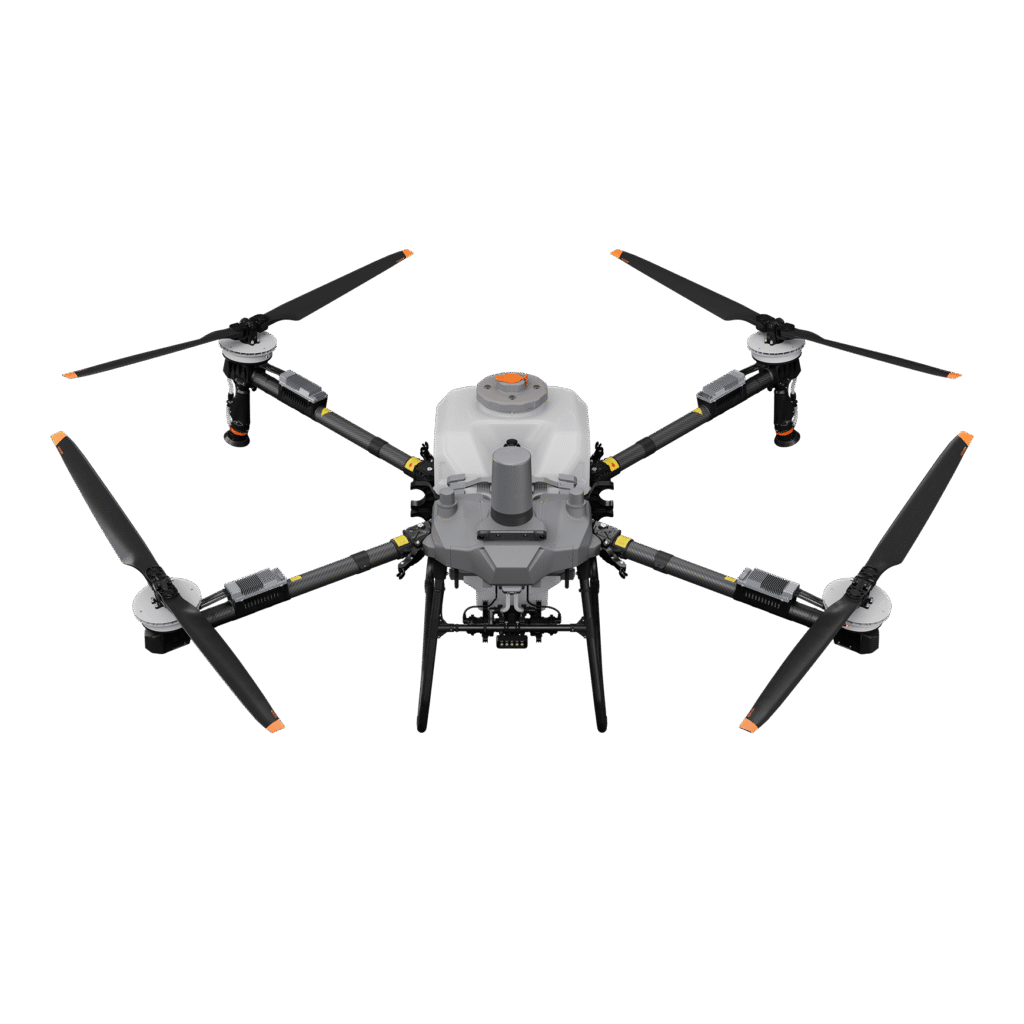

HBC T70P Agricultural Drone
Load 70 kg
30 l/min (2 nozzles as standard)
40 l/min (4 nozzles as option)
Dual atomizing centrifugal nozzles: 50-500 µm
Water-cooled mist nozzles (option): 10-500 µm
Recommended spray width 7 m
100-liter (70 kg[22]) container
400 kg/min Maximum discharge rate[10]
Effective spread 10 m
65 kg load capacity
Real-time weighing
Automatic swing reduction
Mobile phone guidance at loading and unloading points
Trinocular vision system
2 millimeter wave radars
Intelligent detection of obstacle types
AR display of people/vehicles/obstacles
Automatic memorization of obstacle locations
Intelligent extrication
Ground imitation operation without aerial survey
10 Minutes Fast Charging
DB2160 Smart Flight Battery
D12500iE All-in-One Inverter Charging Station

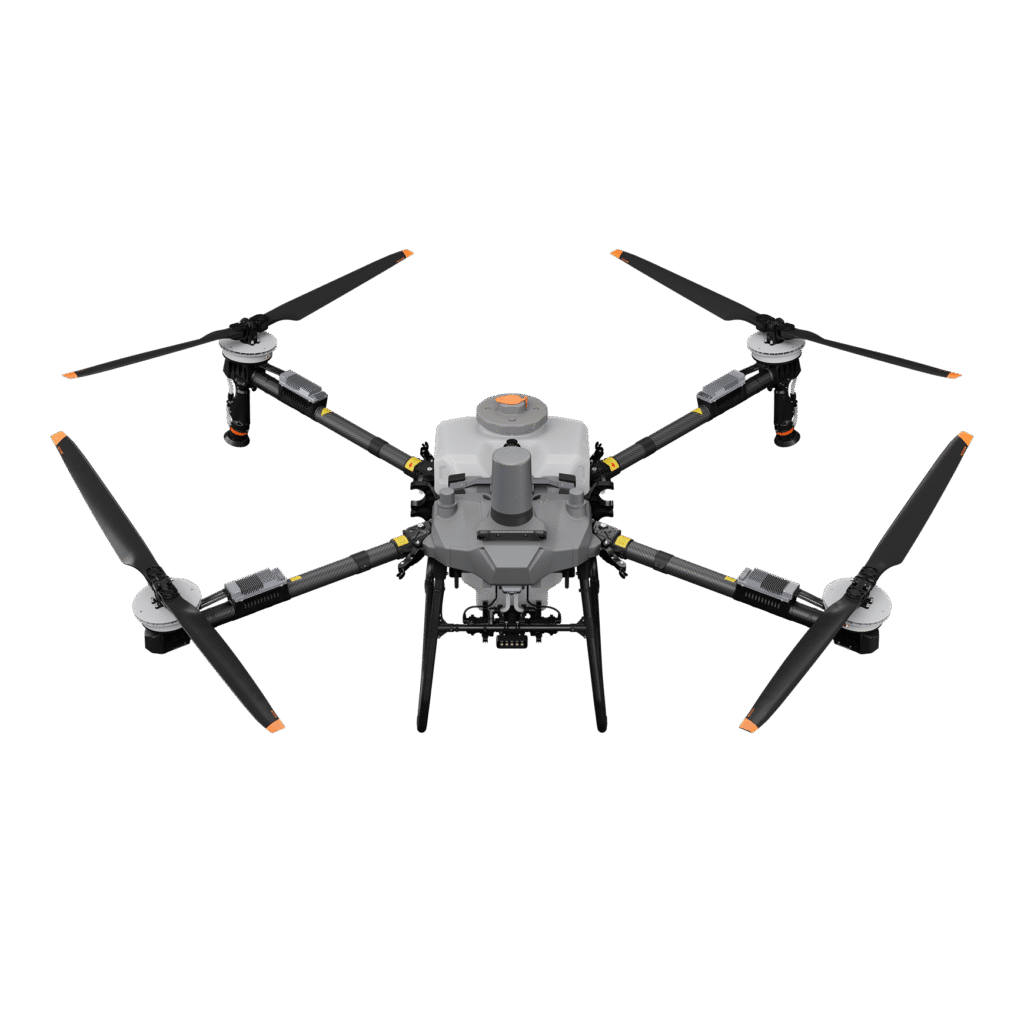

HBC T70 Agricultural Drone
Load 50 kg
30 l/min (2 nozzles as standard)
40 l/min (4 nozzles as option)
Dual atomizing centrifugal nozzles: 50-500 µm
Water-cooled misting nozzles (option): 10-500 µm
Recommended spray width 7 m
100 liter (70 kg) tank
400 kg/min Maximum discharge rate
Effective spread 10 m
65 kg load capacity
Real-time weighing
Automatic swing reduction
Mobile phone guidance at loading and unloading points
Trinocular vision system
2 millimeter wave radars
Intelligent detection of obstacle types
AR display of people/vehicles/obstacles
Automatic memorization of obstacle locations
Intelligent extrication
Ground imitation operation without aerial survey
8-minute Fast Charging
DB1580 Smart Flight Battery
D12500iE All-in-One Inverter Charging Station
