Product Details
Mini2: Multi-Gas Detection System for DJI M350/M300/M30 Industrial Drones
9-gas detection for real-time air quality analysis.
300g ultra-light design extends drone flight time.
HBC M350/M300 integration ensures rapid deployment.
3D gas mapping via intuitive visualization software.
Expandable modules adapt to industrial/environmental needs.
Product Introduce

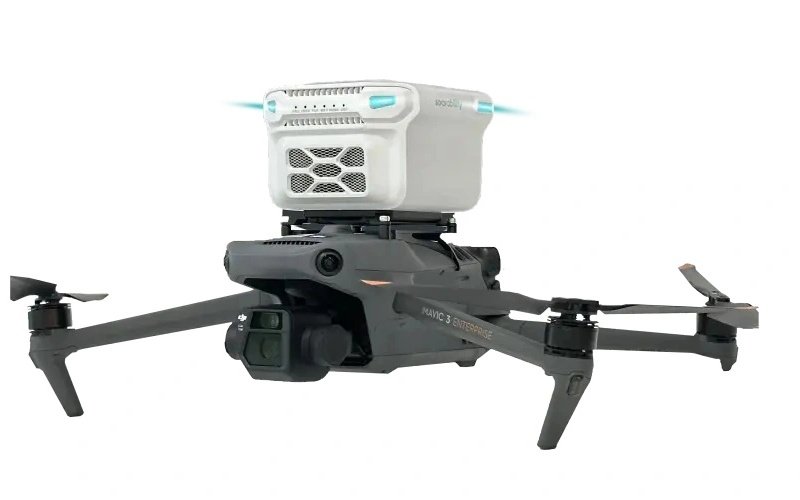

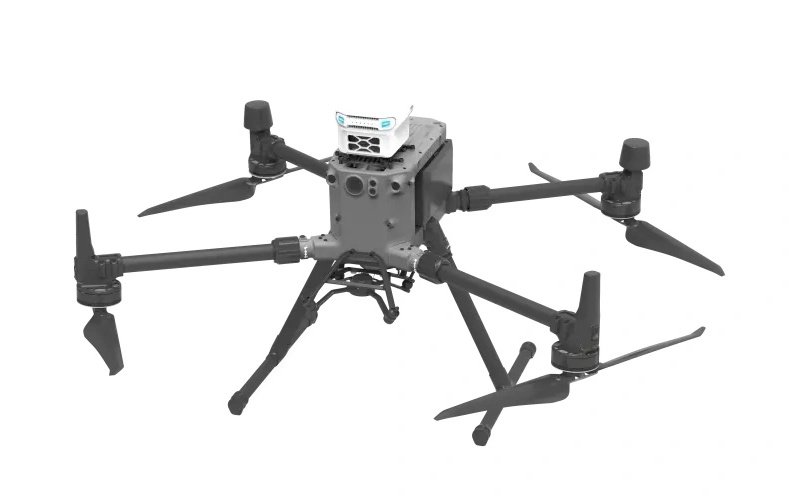

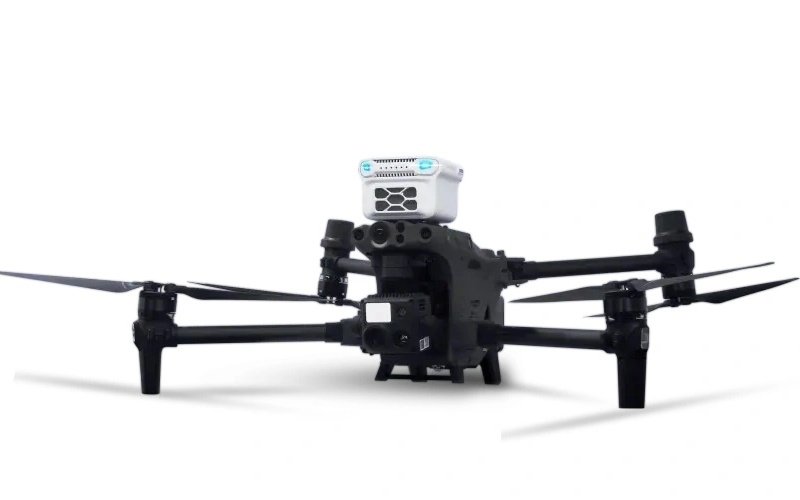

The Mini2 is a compact, lightweight multi-gas detection system designed for DJI M350 RTK, M300, and M30 Series drones, enabling real-time 3D gas mapping for critical environmental and industrial applications.

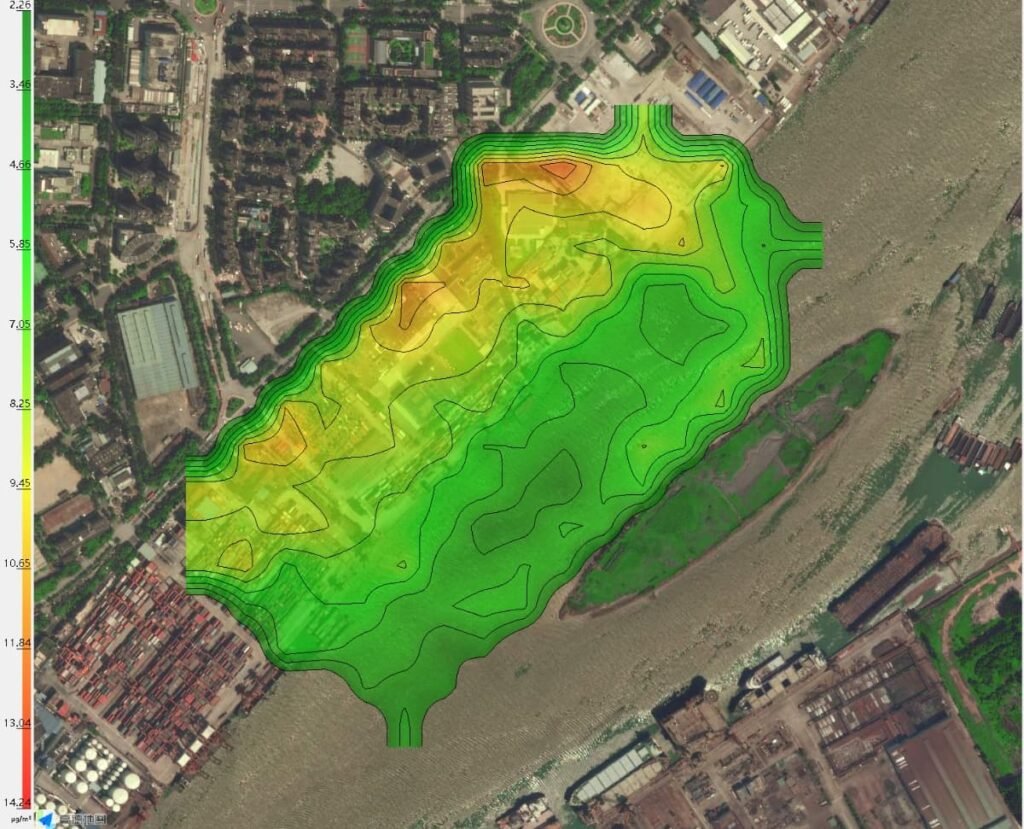

The supporting gas index analysis software enables clear visualization of each gas parameter index, pollution area, altitude, etc., enabling rapid 3D positioning of pollution zones.
Key Features:
1. 9-Gas Simultaneous Detection: Customizable sensors for PM2.5, CH4, H2S, TVOC, and more.
2. Ultra-Lightweight (300g): Maximizes flight time without compromising payload.

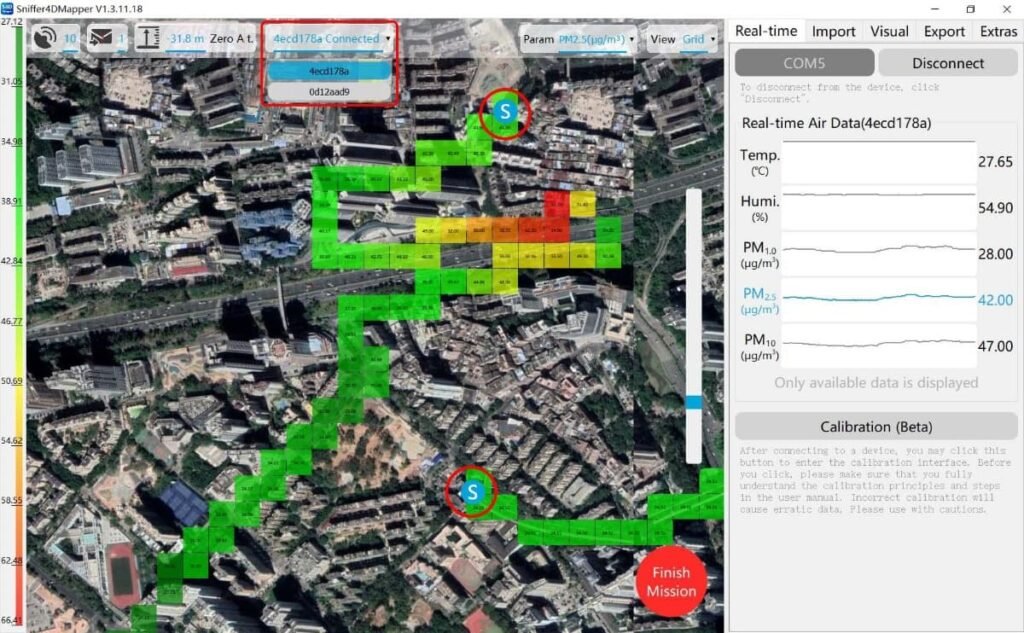

3. Real-Time 3D Mapping: Visualize gas concentrations via intuitive Mappaer software.
4. Seamless DJI Integration: Quick-release mount for fast deployment on DJI drones.
Applications:
1. Oil & Gas: It can efficiently detect whether there is any leakage along the pipeline and in petrochemical plants.
2. HAZMAT: Monitor for any leakage of toxic gases in emergency situations.
3. Environmental Detection: Track whether the factory emissions meet the standards or the air quality in the urban area.
Available Parameters: PM2.5 | PM10 | SO2 | CO | NO2 | 03 | TVOC|LEL | CH4|CO2| HF | H2S | NH3 | HCI| H2| CI2| PH3 | NO | HCN | Odor (OU) HCHO
Product Video
Performance parameter
Detection Items
Range
LOD
Detection Items
Range
LOD
PM1.0,PM2.5,PM10
0~1000ug/m3
1ug/m³
NO²
0~11ppm
5ppb
CO
0~11ppm
5ppb
NH³
0~100ppm
1ppb
NO
0~11ppm
5ppb
SO²
0~100ppm
50ppb
H²S
0~90ppm
20ppb
HCl
0~100ppm
1ppb

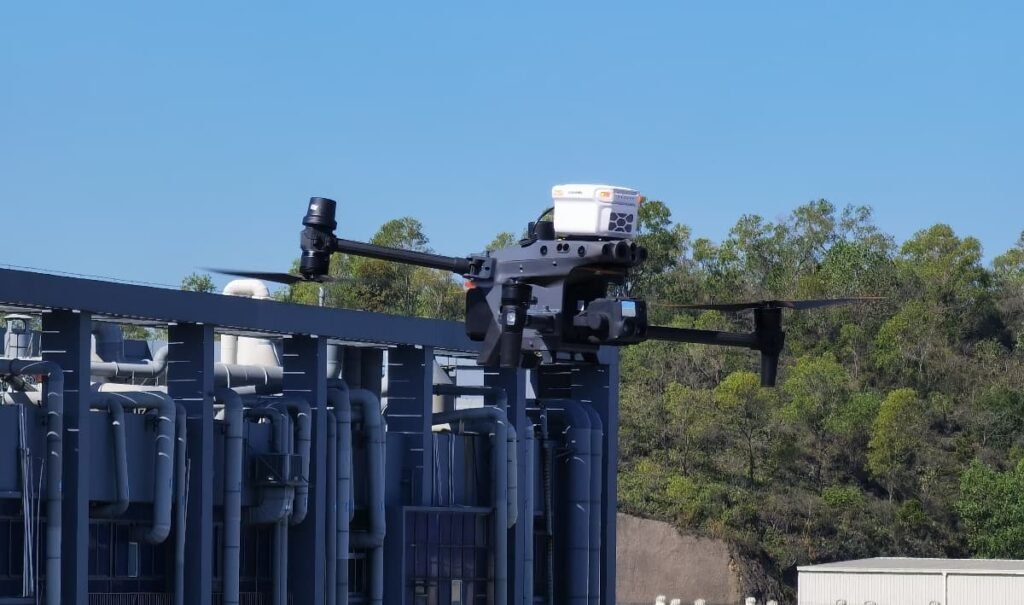

Case shooting
