Product Details
Matrice 300 RTK OSDK Expansion Module
It can be connected to the Matrix M300 RTK and the Manifold 2, and provides a number of interfaces for on-board computing platforms.
Take a Closer Look
Overview
This OSDK extension anchors Manifold 2 to the Matrix M300 RTK flight platform and provides a number of standardized interfaces for easy access to various on-board computing platforms.
Bright spot
Compatible with Matrix M300 RTK and Manifold 2.
Converts the Matrix M300 RTK OSDK interface into standard interfaces such as USB Type-A, UART serial port and XT30 power output interface, which is convenient for accessing various on-board computing platforms.
It supports the use of the upper single gimbal to meet the needs of more application scenarios.
After the OSDK expansion kit is installed on the Matrix M300 RTK, it can be put into the safe transportation box together with the camera body, which is more convenient for storage.
Tips
This accessory converts the OSDK interface of Matrix M300 RTK into standard interfaces such as USB Type A, UART serial port and XT30 power plug, and is not dustproof or waterproof.

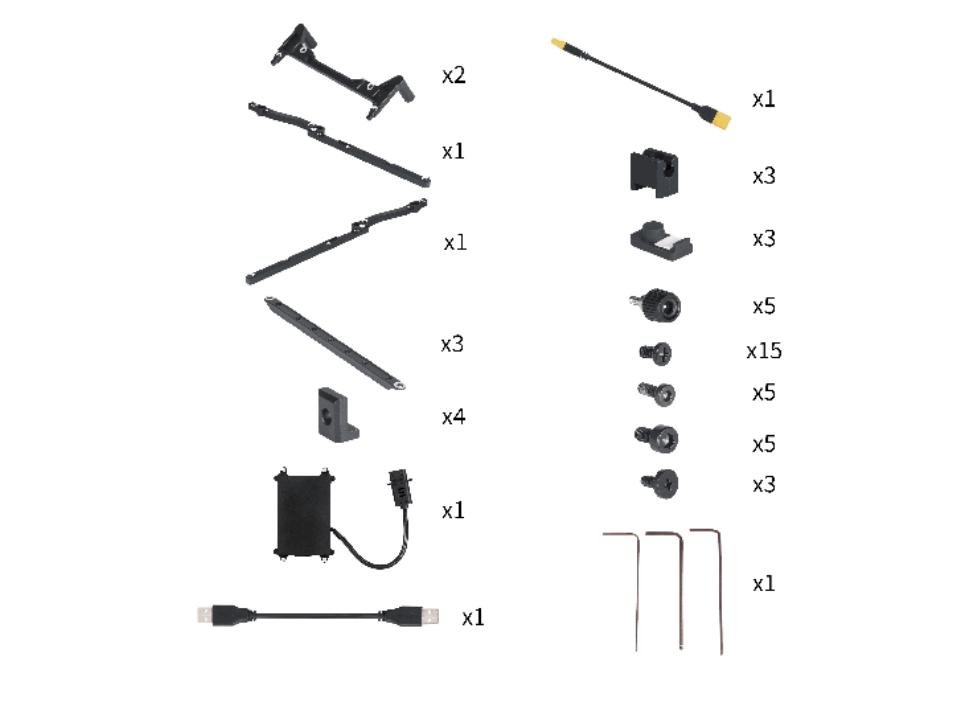

In the Box
Bracket A (top) x 2
Bracket B(Left) x 1
Bracket C (right) x 1
Bracket D (support bar) x 3
Bracket connection block x 4
OSDK Adapter Board Assembly x 1
Dual A-head USB cable x 1
XT30 power cable x 1
Cable Clip x 3
Feet x 3
Hand screws x 5
Screw A(M1.6) x 15
Screw B(M2.0) x 5
Screw C(M3.0) x 5
Screw D(M1.6 step) x 3
Screwdriver kit x 1
Technical Parameters
Finished assembly size: 200 x 120 x 40 mm
Compatibility
Matrix M300 RTK
Manifold 2
