Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).
HBC’s First Dock Adaptable for Vehicle Mounting
HBC DOCK 3
Rise to Any Challenge
Equipped with Matrice 4D or Matrice 4TD high-performance drones, Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance. They can also pair with RC Plus 2 Enterprise for standalone use. With FlightHub 2’s intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Wind Resistance
Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes.
12m/s
Max Wind Speed Resistance

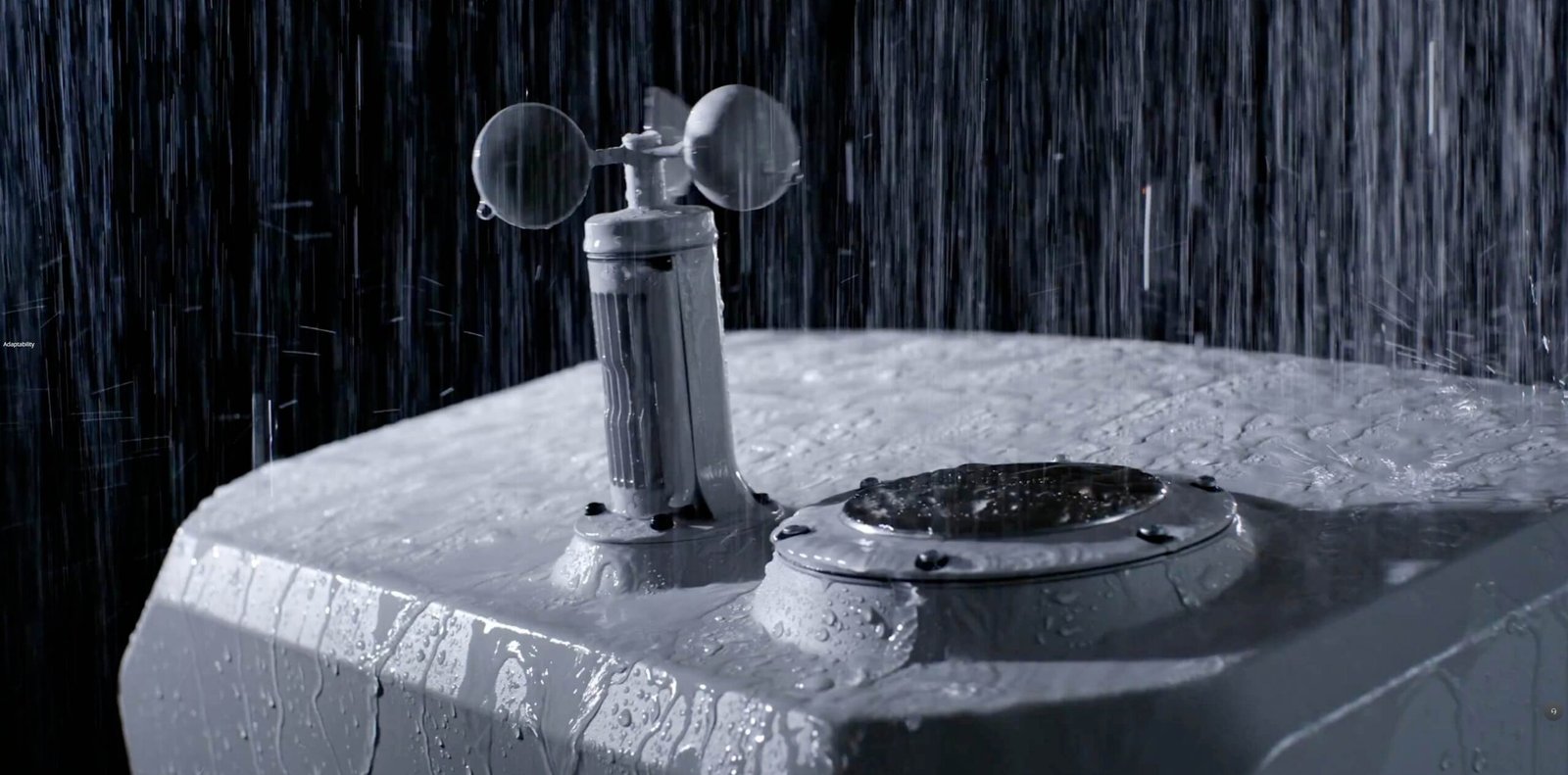

Rugged and Dependable
Dock 3’s design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.
IP56
DJI Dock 3
IP55
Matrice 4D/4TD
Low-Noise and Anti-Ice Propellers
Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.
Heat Resistant
Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.
50° C
Highest Operating Temperature
Cold Resistant
-30° C
owest Operating Temperature
Flexible Deployment, Ultra-Long Transmission
Dock 3 can be flexibly deployed, redefining the paradigm of operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated locations, allowing for flexible site selection of the dock. With the new DJI Enterprise app, deployment can be completed using just a smartphone. [3] Additionally, for the first time, a Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.
Fixed-Mounted Deployment
The new D-RTK 3 Relay Fixed Deployment Version [4] offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.
Near High-Rise Buildings
nstalling the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.
Near Communication Towers
Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.
Fixed-Mounted Deployment

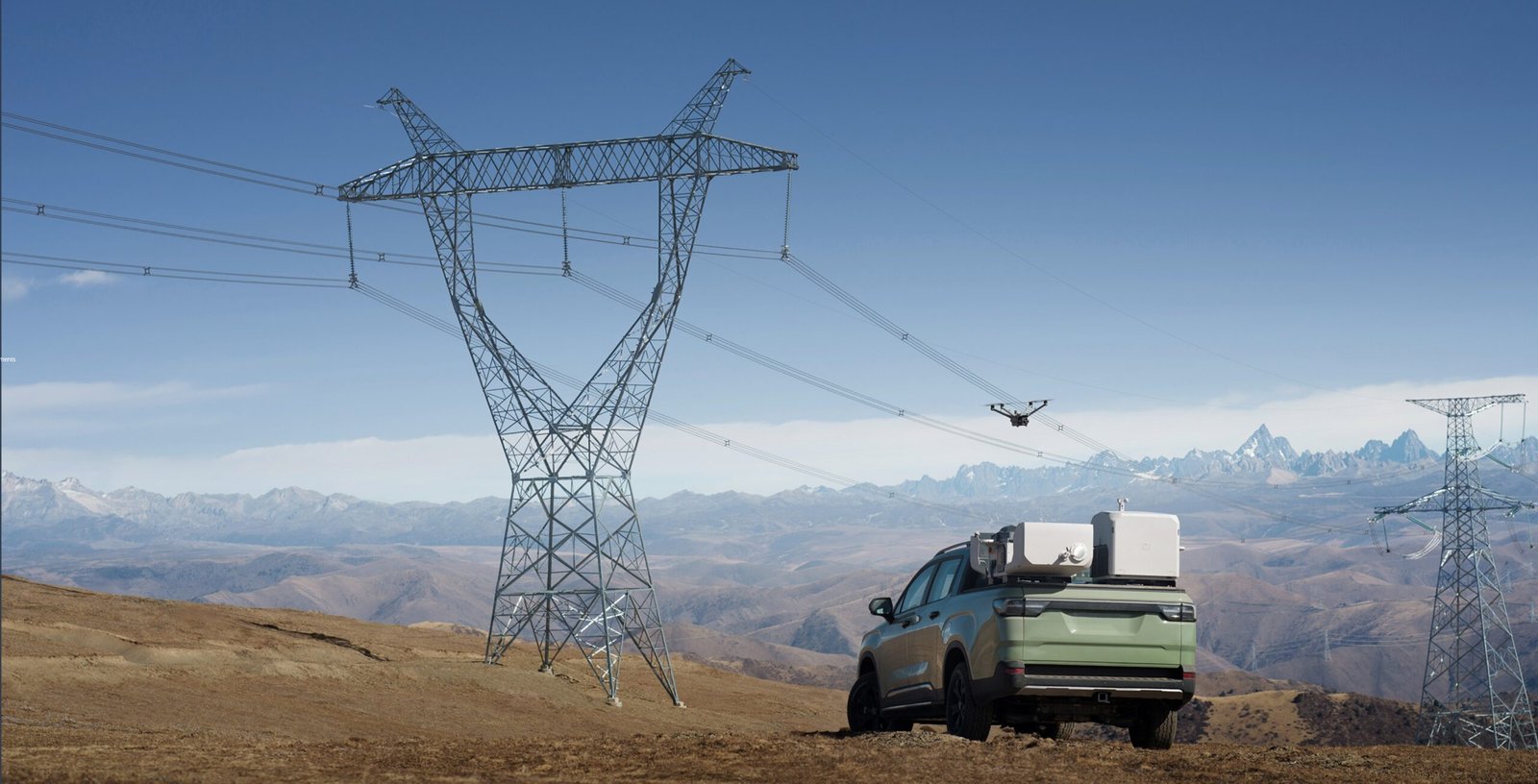

Dock 3 is DJI’s first Dock to support mobile vehicle-mounted deployment. [6] Optimized for this purpose, the Dock’s overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using Dock 3 Vehicle-Mounted Gimbal Mount [4] for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.
During mobile operations, indoor personnel can use DJI FlightHub 2 to remotely set the dock’s location and assign tasks on the cloud, thereby enhancing personnel and scheduling efficiency.
Two docks can be deployed on a single vehicle simultaneously, achieving a significant efficiency boost. Dock 3 employs a special take-over pattern to avoid drone-to-drone collisions and ensure operational safety, allowing the two docks to alternate tasks in an orderly manner.
Automated hovering rotation of two drones enables continuous real-time aerial footage transmission. In emergency scenarios, a spotlight can be equipped to provide full-time illumination.
High-Performance Drones
The all-new water and dust-resistant Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

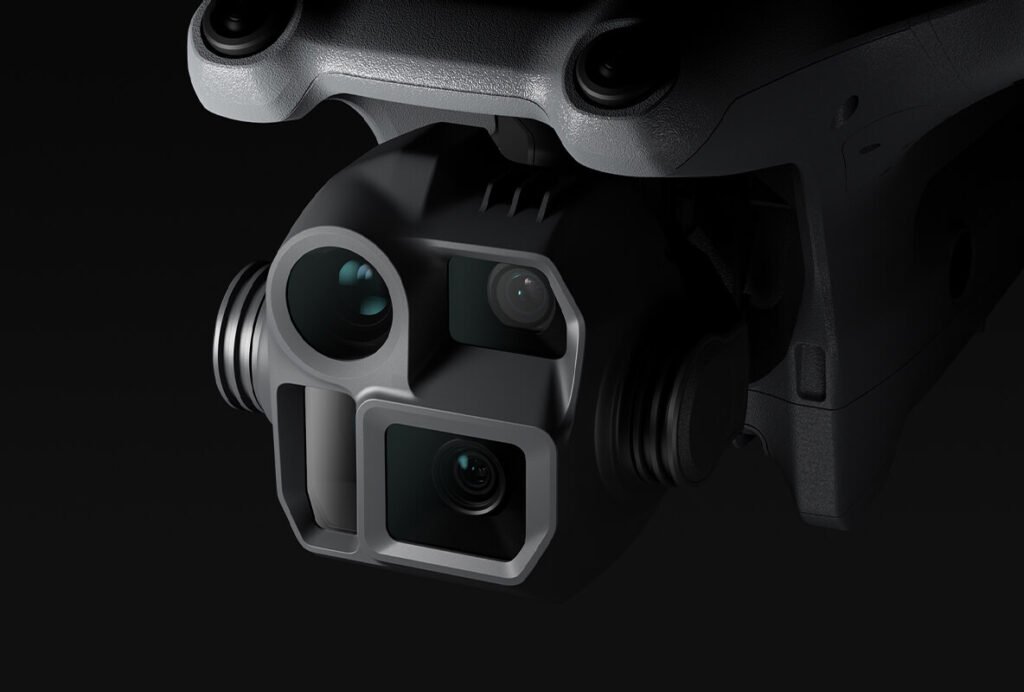

HBC MATRICE 4D
Wide-Angle camera
4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)
HBC MATRICE 4TD
Wide-Angle camera
1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)
NIR Auxiliary Light
6° FOV, 100m [10] Illumination Distance
Infrared Thermal Camera
640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode

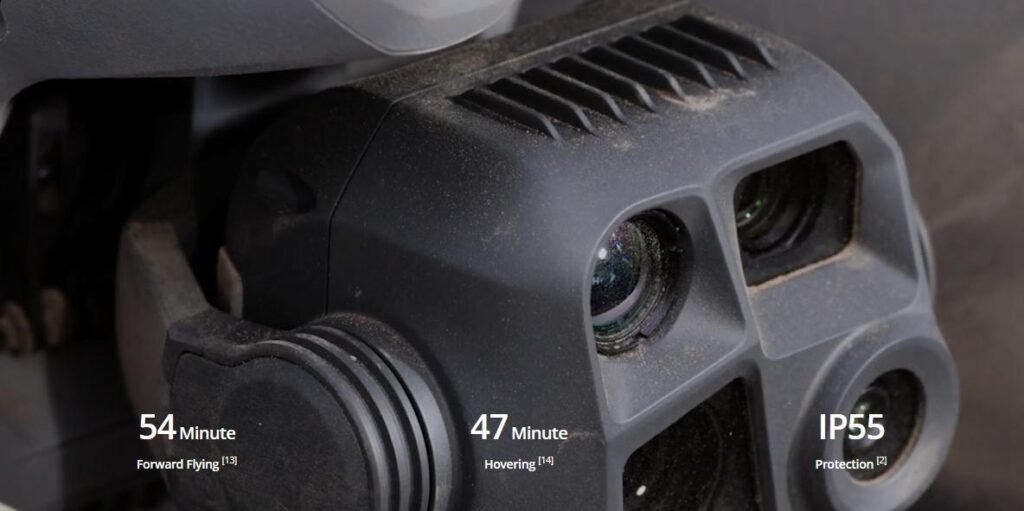

High-Performance Drones
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.
Excels in Low-Light Environments
Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing [11] visual low-light positioning and obstacle sensing capabilities.
The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m. [10]
Matrice 4TD’s infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.

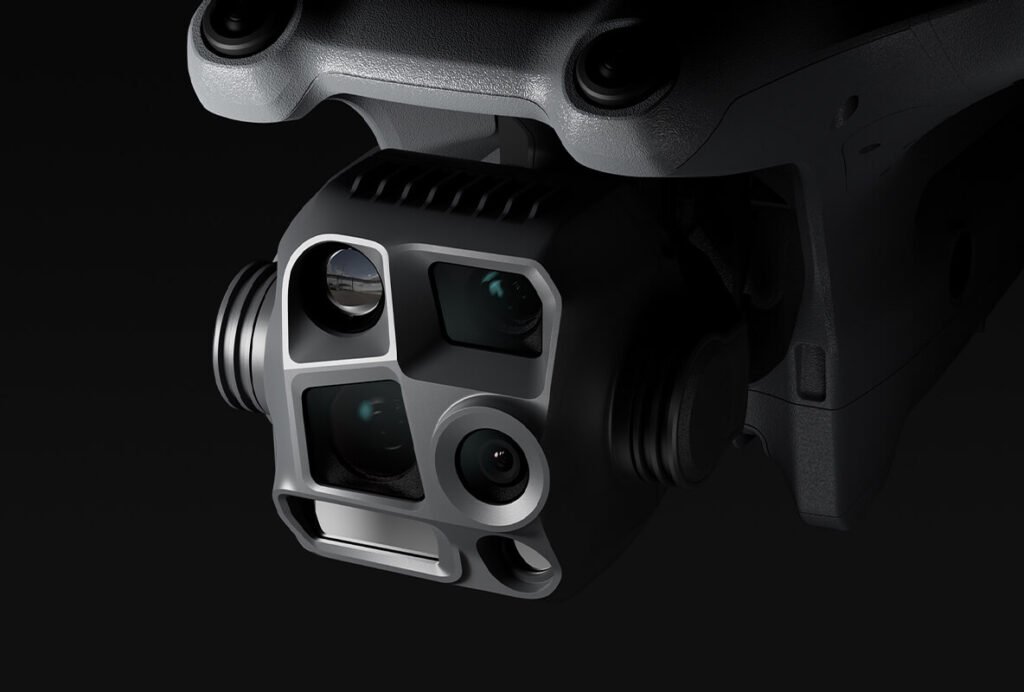

Clear Vision and Stable Images
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. [16]
The 48 MP tele camera captures details, like signs, from up to 250 m away. [17] When using Matrice 4TD’s tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.
Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
High-Precision Surveying
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, [5][18], and real-time terrain following to meet various mapping requirements.

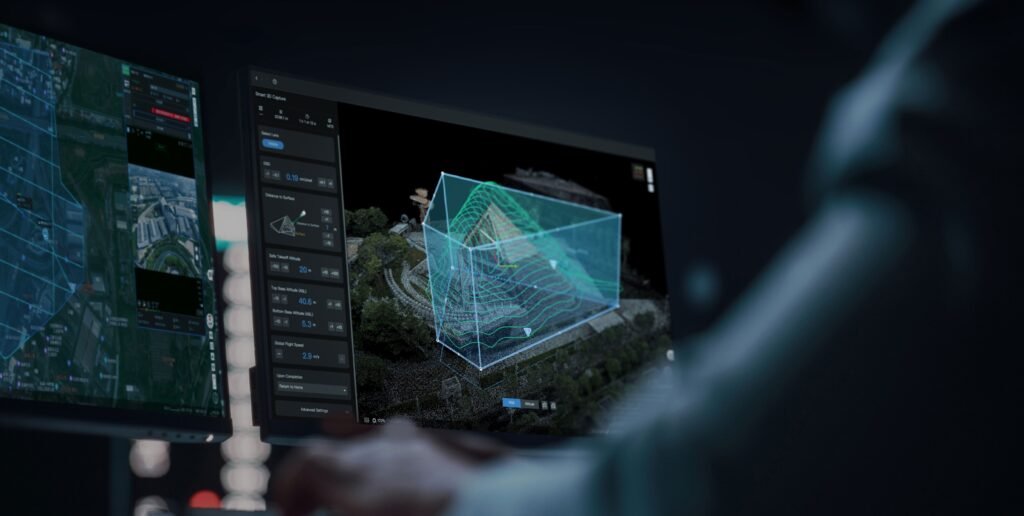

FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes [5], geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Seamless Airborne Relay for Mountainous Terrains
Matrice 4D Series can operate with the RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, [5] ensuring smooth video transmission without a 4G signal or in obstructed conditions. [19] This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.
FlightHub 2 Intelligent Features
When paired with FlightHub 2, Dock 3 greatly enhances the intelligence and efficiency of remote operations.
Intelligent Flight and Control
The new automated flight route is useful across various scenarios, including public safety and inspections. Once a flight route is established, the drone can automatically detect and capture images or videos of subjects like vehicles and vessels and infrared temperature anomalies, and send notifications to the operators.
The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Operators can utilize the powerful auto-zoom capabilities of the Matrice 4D Series to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.
The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving “point and see.”
Efficient Operation
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds.
Engine upgrade significantly reduces [11] live view latency on FlightHub 2, providing reliable support for real-time decision-making.
In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing, [20]and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.
Efficient Operation

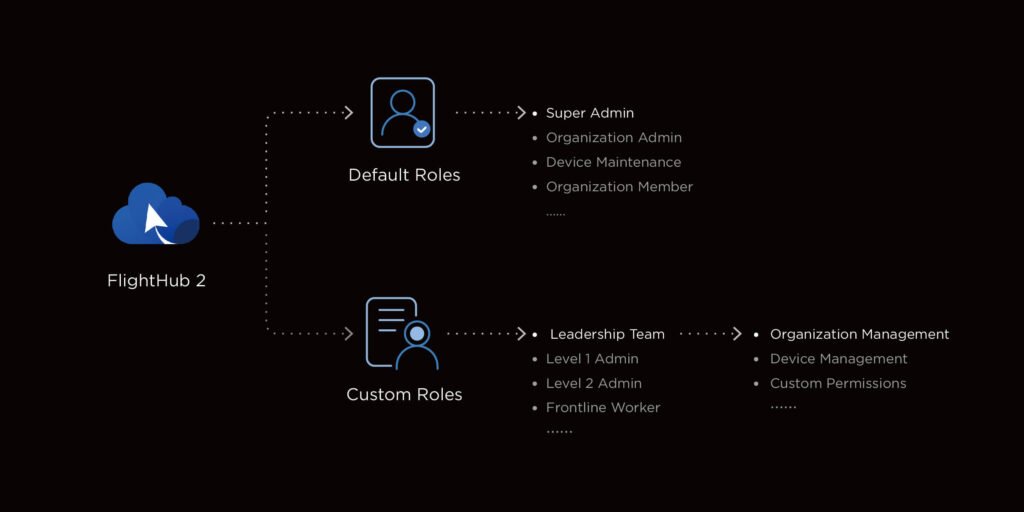

FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.
FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.

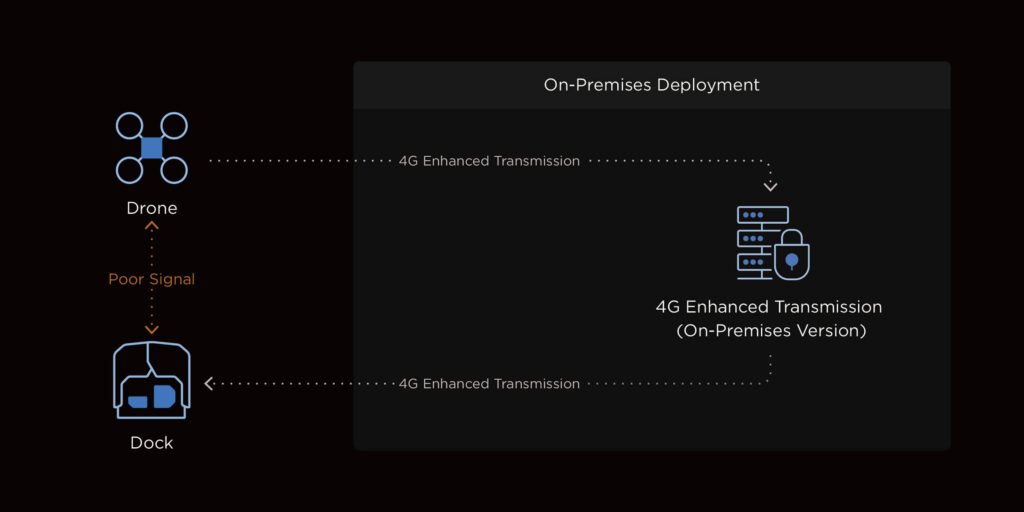

With DJI Cellular Dongle 2 [21], the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.
Open Ecosystem, Breaking Boundaries
Intelligent Algorithm Developer
Provides necessary model training tools and assist in the third-party developer certification process, helping expand new intelligent applications.
PSDK
E-Port and E-Port Lite encryption authentication ensure secure and worry-free payloads, enabling the Matrice 4D Series to have broader application scenarios.
MSDK
Mobile SDK 5 simplifies the development of apps to control the Matrice 4D Series. Mobile SDK 5 is fully open source and comes with production code samples of core Pilot 2 modules, ensuring its reliability.
Cloud-to-Cloud Coordinated Operation
Through FlightHub 2’s FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of data.
Cloud API
With Pilot 2’s built-in Cloud API (MQTT-based protocol) you can directly connect the Matrice 4D Series to third-party cloud platforms. Access the drone’s hardware, video live-stream, and photo data without having to develop an app.
Third-Party Payloads
Enable more functionality by connecting third-party payloads [4] such as parachute via the aircraft’s E-Port or remotely control added payloads via FlightHub 2. It also features an additional port for PSDK payload at the rear.
Terra API
With the Terra API, users can integrate its powerful mapping capabilities into their own platforms, achieving automated 2D and 3D reconstructions. Additionally, users can customize photogrammetry workflows as needed, allowing the Matrice 4D’s operational results to meet the needs of various industry applications better.
Comprehensive Accessory Upgrades
H-RTK 3 Relay Fixed Deployment Version
The H-RTK 3 Relay Fixed Deployment Version enables centimeter-level high-precision positioning for drones. Equipped with signal relay functionality, it can effectively address obstruction issues when deployed at elevated locations, significantly enhancing video transmission distance and easing deployment conditions of Dock 3.

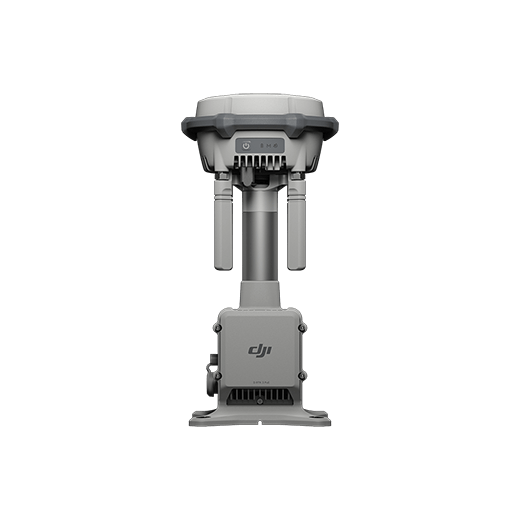

D-RTK 3 Relay Fixed Deployment Version

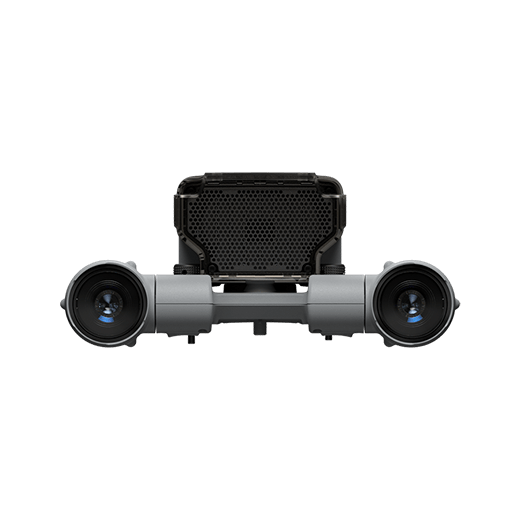

Integrated Broadcasting and Lighting
240W Power Adapter

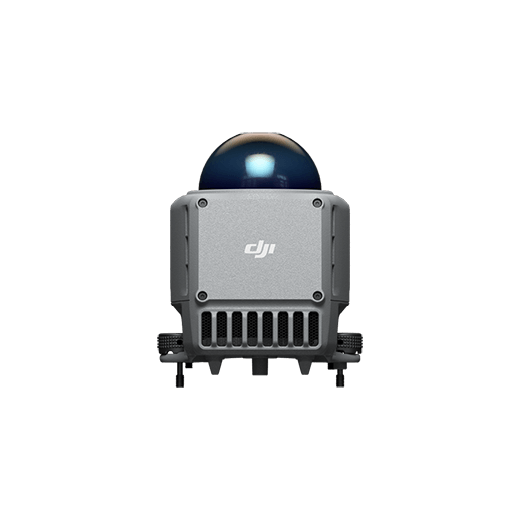

obstacle sensing Module

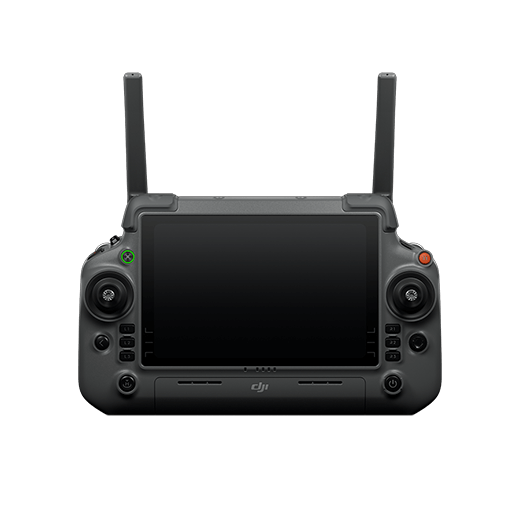

RC Plus 2 Enterprise

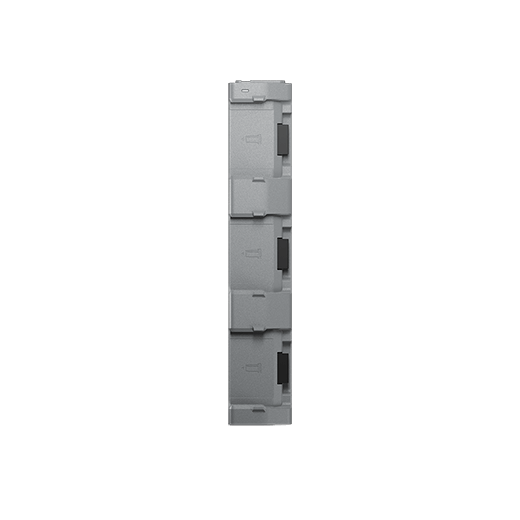

Matrice 4D series 240w charging Hub

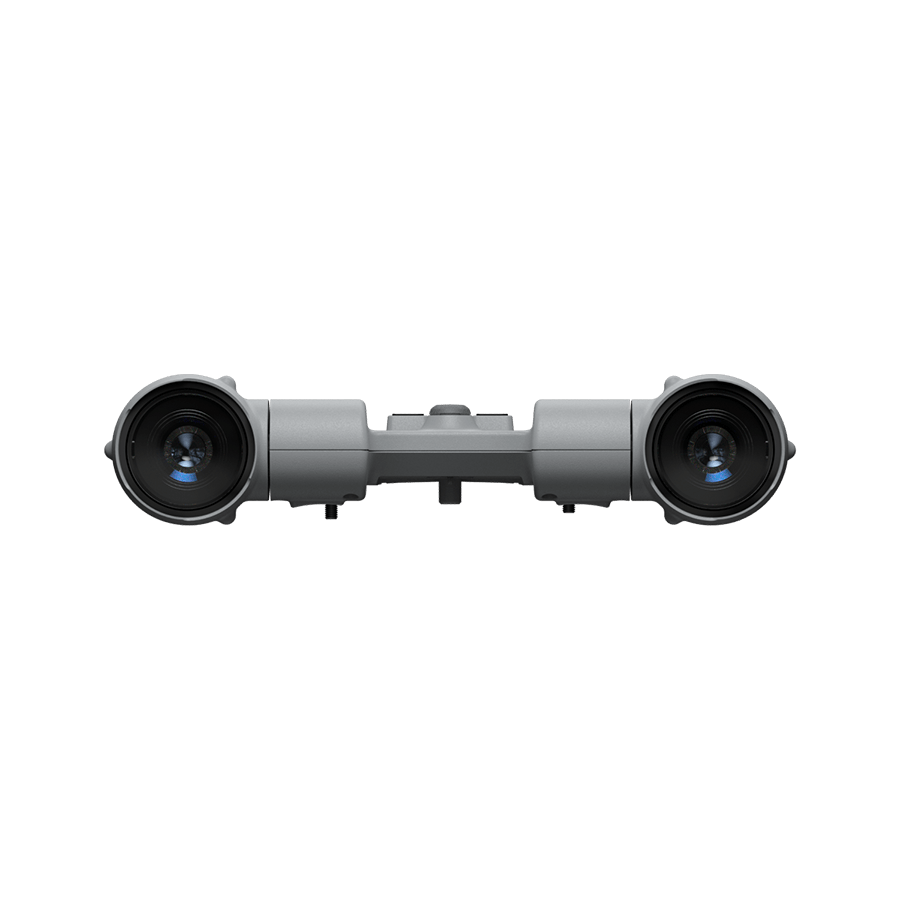

Gimbal-Following spotlight

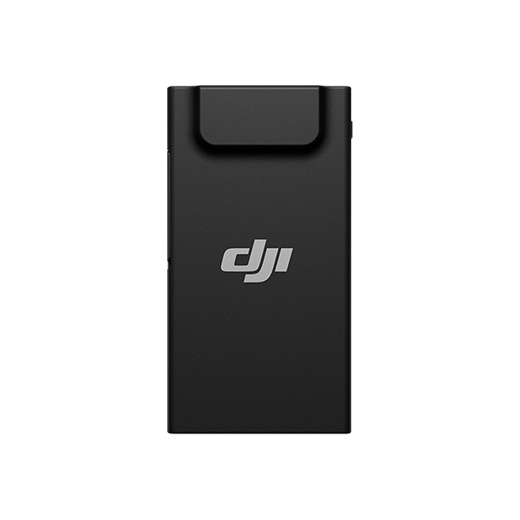

cellular Dongle 2

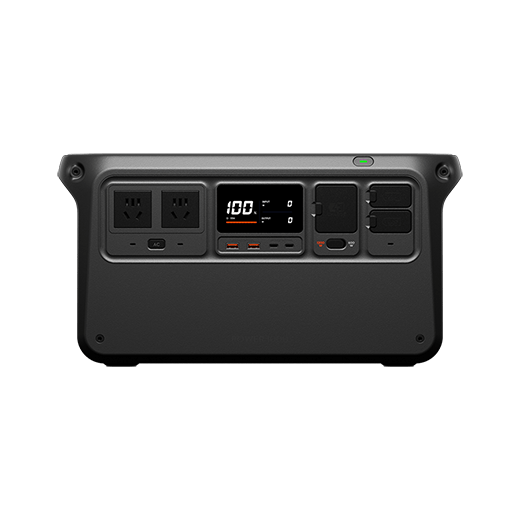

Power 1000
RealTime Voice Speaker
