Product Details
H-RTK 3 Multifunctional Station
The new H-RTK 3 multifunctional base station can be used as a reference station to help multiple UAVs achieve centimeter-level positioning, or in repeater mode to extend the UAV’s operational range.
Take a Closer Look
Overview
The new H-RTK 3 multifunctional base station integrates a high-performance antenna and receiver module capable of tracking and interpreting data from the world’s leading satellite navigation systems and supports a wide range of data transmission links. With the built-in high-performance sensors, it can also analyze the device’s position status. With its outstanding performance, it can be used as a reference station to help multiple UAVs achieve centimeter-level positioning, and can also expand the operating range of UAVs in relay station mode. In addition, the new mobile station mode, in conjunction with industry applications and SmartMap, provides a one-stop solution for high-precision aerial survey applications.
Bright spot
The new H-RTK 3 multifunctional base station can be used as a reference station to help multiple UAVs achieve centimeter-level positioning, or in repeater mode to extend the UAV’s operational range.
Tips
1. Measurement accuracy depends on a variety of factors, and this value is measured under normal conditions of open and unobstructed space, good satellite distribution, an inactive ionosphere, and the absence of electromagnetic interference and multipath effects.
2. Strong vibration, rapid rotation and other irregular operations may affect the accuracy of inertial guidance.

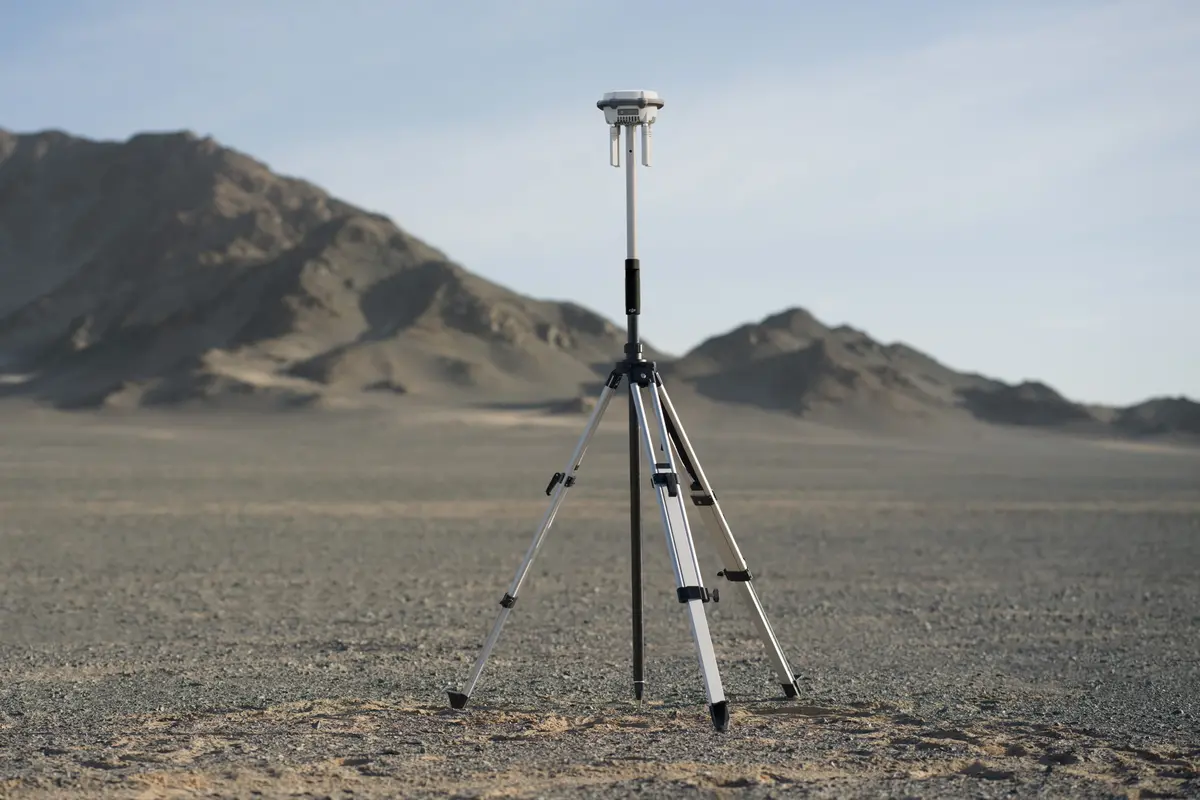

3. The relay station should be deployed in a high and unobstructed location to solve the problem of obstacle blockage between the remote control and the vehicle. 4.
4. The above data is measured in an open and interference-free environment, and it is the farthest communication distance for one-way non-return flight under each standard, please pay attention to the return alert of the APP when you are actually flying.
5. Please make sure that all the plug ports are properly installed.

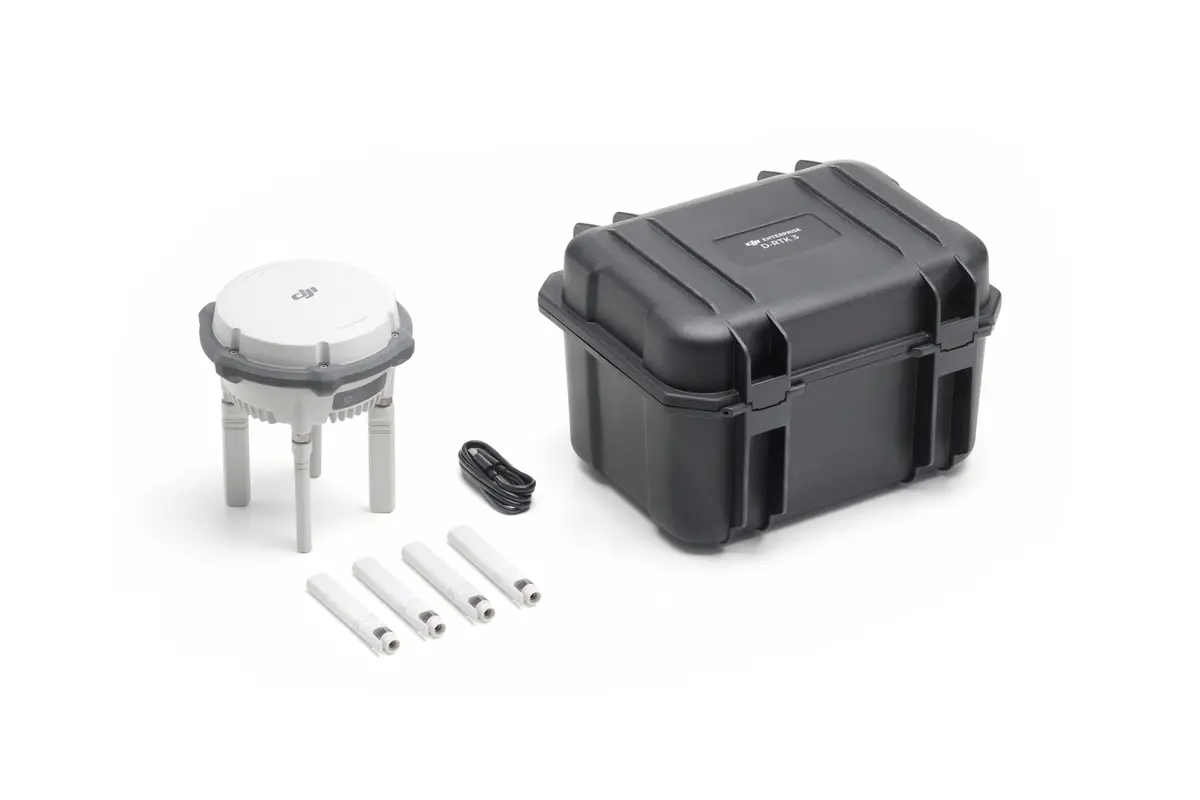

In the Box
H-RTK 3 Multi-function Base Station × 1
Spare OcuSync directional antenna × 4
A-C cable × 1
Technical Parameters
Satellite Receiving Frequency Points
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Mobile station mode accuracy
Fixed measurement:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement:
Angular range: 0° to 60
Horizontal: 8 mm + 0.7 mm/° Tilt (accuracy <2 cm over 30°)
Maximum Signal Effective Distance (Repeater Mode, No Interference, No Occlusion)
FCC:
Drone-relay distance 15 km
Repeater-Remote Distance 1 km
SRRC:
UAV-relay distance 12 kilometers
Relay-remote control distance 1 km
CE:
Drone-relay distance 8 kilometers
Relay-remote control distance 300 meters
Protection: Single main unit: IP67
Size: Φ163 mm × 89 mm (without OcuSync directional antenna)
Weight: 1.26 kg
