Product Details

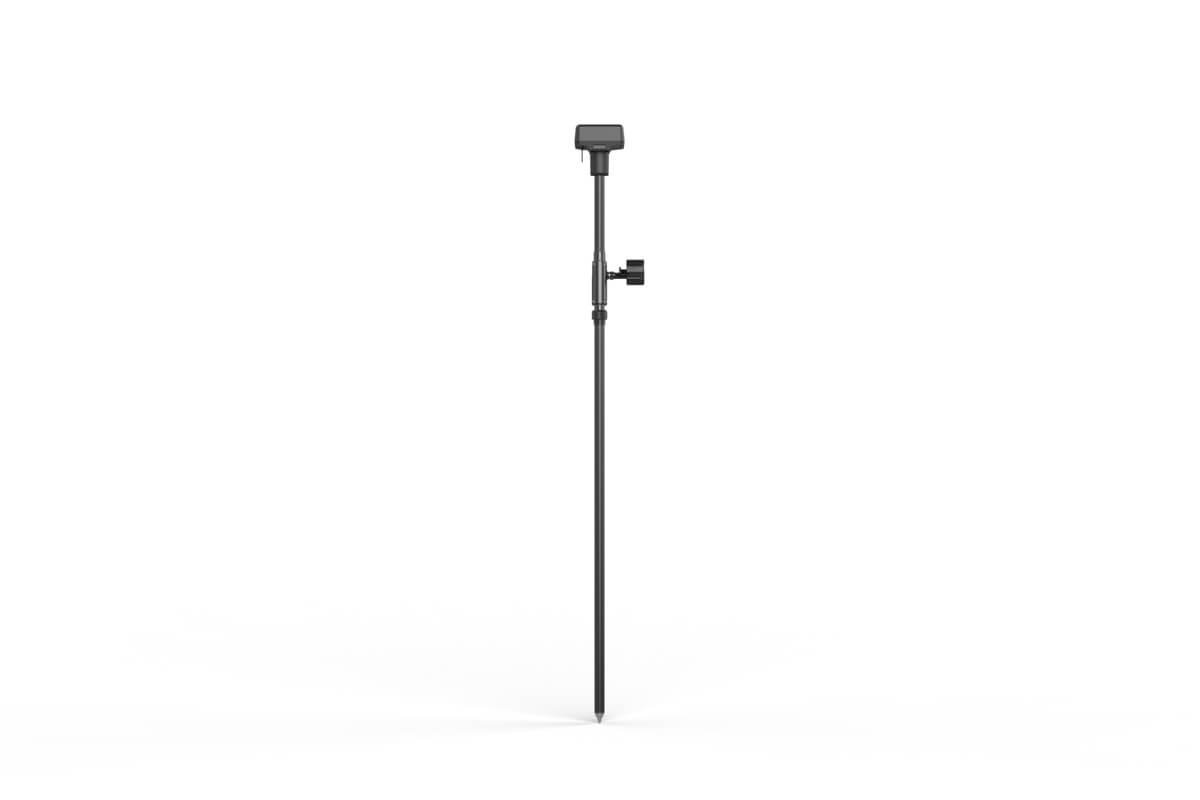

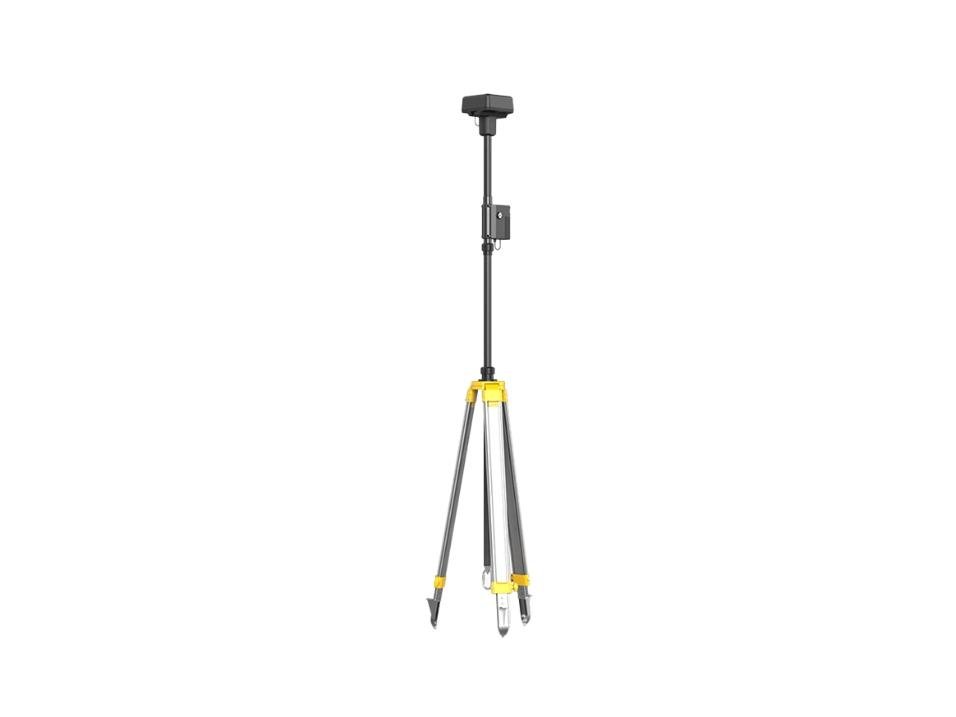

H-RTK 2
Supporting global mainstream satellite navigation systems, it assists aircraft in centimeter-level high-precision positioning by providing real-time differential data.
Take a Closer Look
Overview
H-RTK 2 mobile station supports the reception of 11 frequency satellite signals from 4 systems, such as BeiDou, GPS, Galileo, GLONASS, etc., and can provide real-time differential data, which helps the aircraft to perform centimeter-level high-precision positioning. Meanwhile, it supports multi-machine linkage and has IP65 grade protection performance.
Bright spot
Support GPS, GLONASS, BeiDou, GALILEO and other 4 systems 11 frequency satellite signal reception
Support multi-machine linkage
IP65 grade protection
In the Box
H-RTK 2 Main body ×1
Extension Pole ×1
Charge Manager ×1
Smart Battery (WB37) ×2
Battery cover ×1
USB-C cable ×1
USB-C OTG cable ×1
Allen wrench ×1
Technical Parameters
Satellite reception frequencies are received simultaneously:
gps: l1 c/a, l2, l5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning accuracy:
Horizontal (single point): 1.5 meters (RMS)
Vertical (single point): 3.0 meters (RMS)
Horizontal (RTK FIX): 1 cm + 1 ppm (RMS)
Vertical (RTK FIX): 2 cm + 1 ppm (RMS)
1 ppm: Accuracy decreases by 1 mm for each additional kilometer. For example, if you are 1 km from the base station, the accuracy is 1.1 cm.
IP65 rated protection
Operating temperature: -20° C to 55° C
Compatibility
M350 RTK
HBC Inspire 3
HBC Mavic 3E
HBC Mavic 3T
Matrix M30 Series
Phantom 4 RTK
Matrix M300 RTK
HBC Matrice 400
